Potassium in PDB 9es1: Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex

Enzymatic activity of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex

All present enzymatic activity of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex:
3.6.4.9;

Other elements in 9es1:

The structure of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex also contains other interesting chemical elements:

Magnesium (Mg) 7 atoms

Potassium Binding Sites:

The binding sites of Potassium atom in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex (pdb code 9es1). This binding sites where shown within 5.0 Angstroms radius around Potassium atom.
In total 7 binding sites of Potassium where determined in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex, PDB code: 9es1:
Jump to Potassium binding site number: 1; 2; 3; 4; 5; 6; 7;

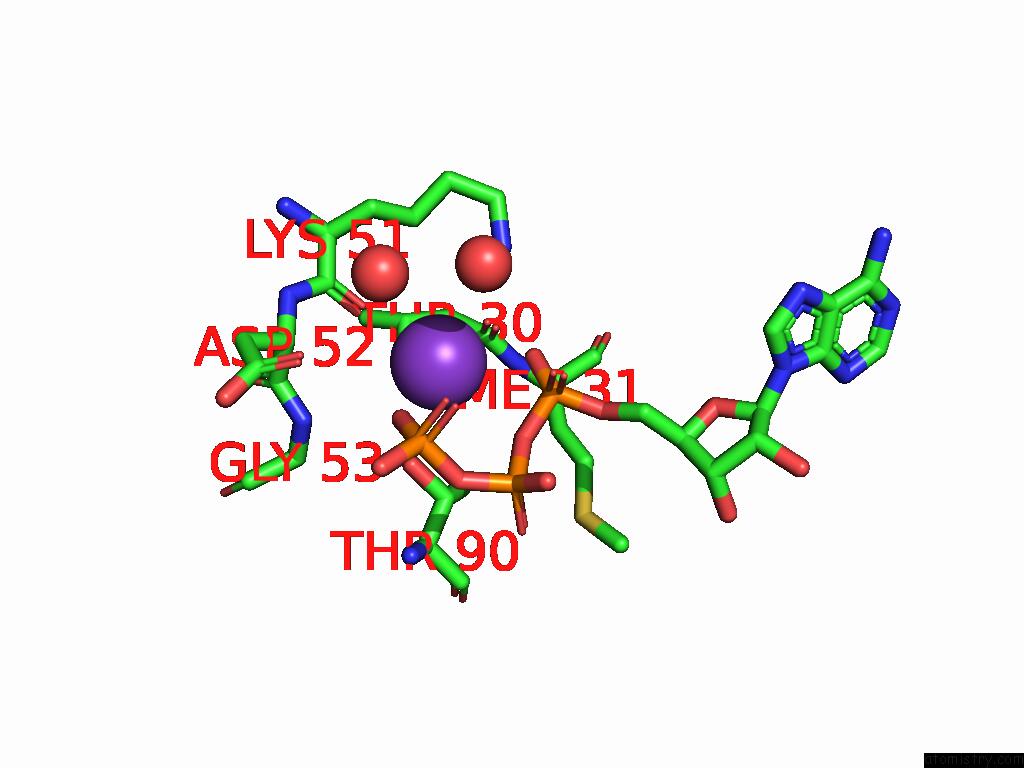

Potassium binding site 1 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1

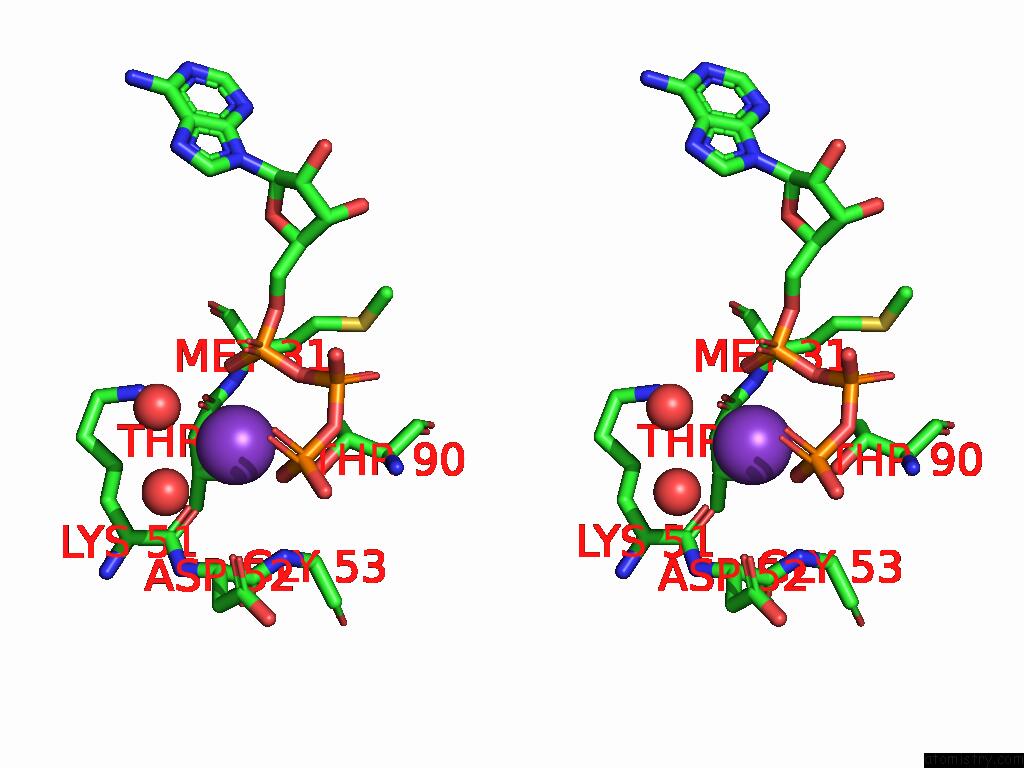

Potassium binding site 1 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 1 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K603

b:75.5
occ:1.00
 O2G A:ATP601 2.7 72.7 1.0
O A:LYS51 2.7 84.9 1.0
O A:THR30 2.7 76.4 1.0
OG1 A:THR30 2.8 54.3 1.0
O1A A:ATP601 2.8 78.4 1.0
OG1 A:THR90 3.2 73.6 1.0
O3A A:ATP601 3.5 66.9 1.0
CB A:THR30 3.5 55.2 1.0
C A:THR30 3.6 65.5 1.0
PA A:ATP601 3.7 86.8 1.0
NZ A:LYS51 3.9 62.5 1.0
PG A:ATP601 3.9 82.6 1.0
C A:LYS51 3.9 77.0 1.0
O3G A:ATP601 4.1 72.2 1.0
CB A:THR90 4.1 55.4 1.0
CA A:THR30 4.2 55.7 1.0
N A:GLY53 4.3 55.3 1.0
O3B A:ATP601 4.3 70.9 1.0
CG A:LYS51 4.3 63.4 1.0
O2A A:ATP601 4.4 86.6 1.0
N A:MET31 4.4 60.5 1.0
O A:HOH926 4.6 71.7 1.0
CA A:MET31 4.6 56.0 1.0
CG2 A:THR90 4.6 57.7 1.0
CA A:ASP52 4.7 72.9 1.0
C A:ASP52 4.7 76.3 1.0
PB A:ATP601 4.7 67.7 1.0
N A:ASP52 4.8 80.2 1.0
CB A:LYS51 4.8 68.4 1.0
CG2 A:THR30 4.8 57.7 1.0
CA A:LYS51 4.9 67.7 1.0
CA A:GLY53 4.9 56.6 1.0
O A:HOH776 5.0 71.0 1.0
O5' A:ATP601 5.0 64.4 1.0

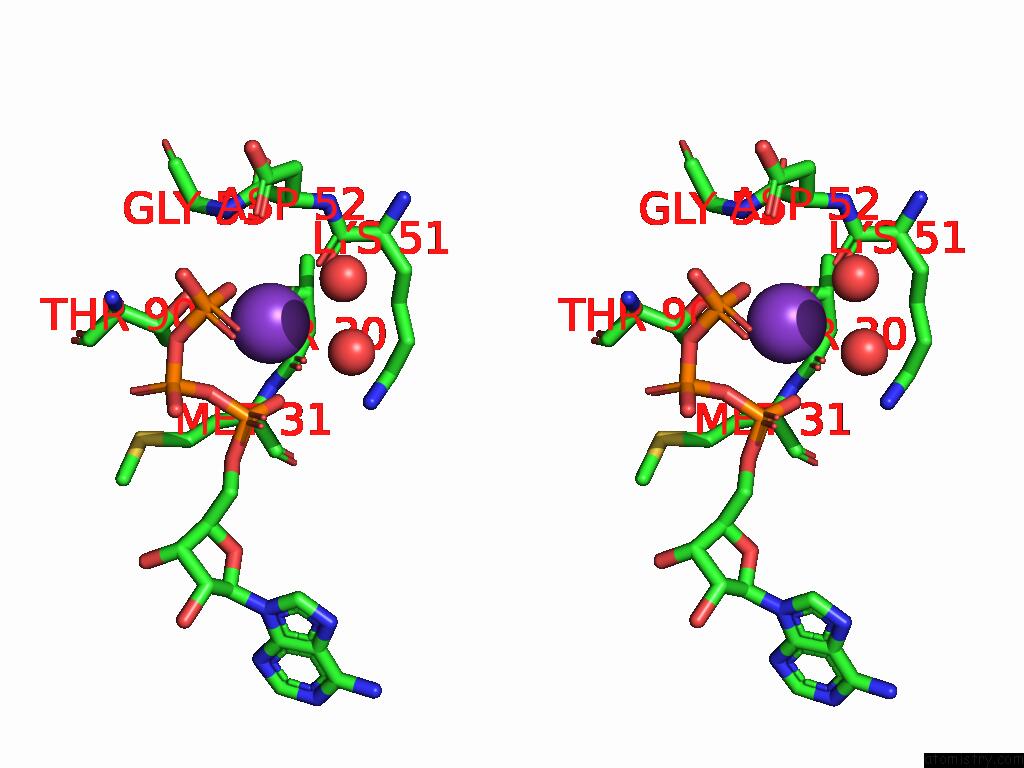

Potassium binding site 2 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1

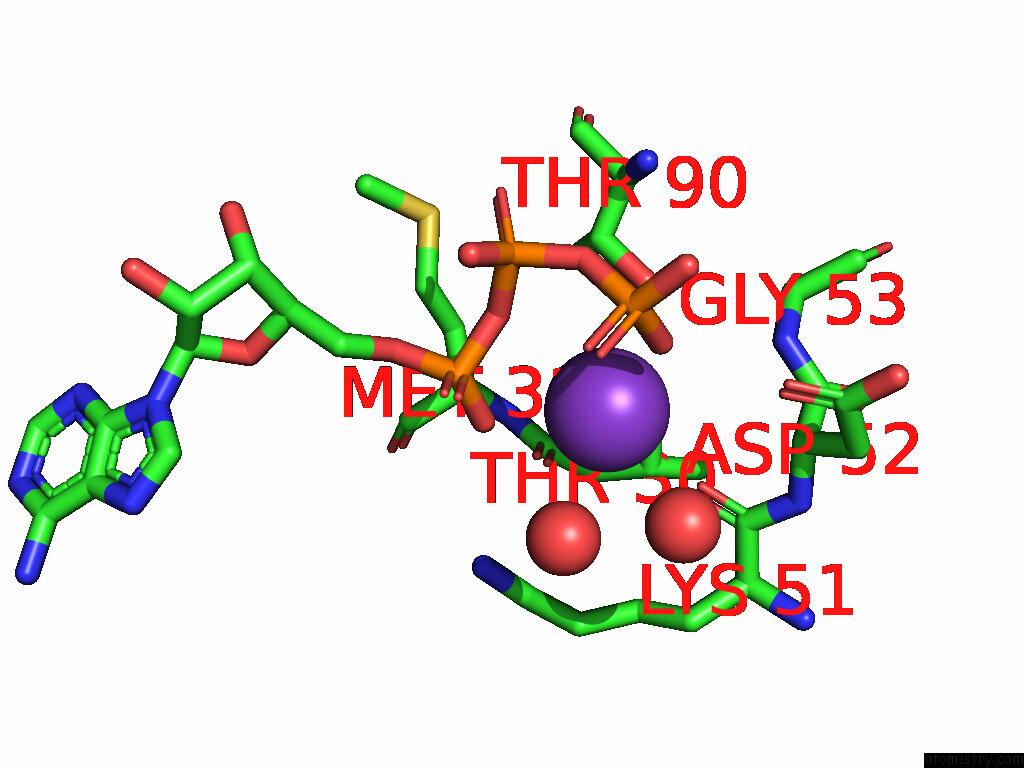

Potassium binding site 2 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 2 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
B:K603

b:81.1
occ:1.00
 O2G B:ATP601 2.7 72.1 1.0
O B:LYS51 2.7 78.7 1.0
O B:THR30 2.7 71.1 1.0
O1A B:ATP601 2.8 78.1 1.0
OG1 B:THR30 2.8 49.9 1.0
OG1 B:THR90 3.2 71.1 1.0
O3A B:ATP601 3.4 61.4 1.0
PA B:ATP601 3.6 89.3 1.0
C B:THR30 3.6 64.7 1.0
CB B:THR30 3.7 53.9 1.0
PG B:ATP601 3.9 78.8 1.0
C B:LYS51 3.9 69.8 1.0
CB B:THR90 4.1 56.0 1.0
O3B B:ATP601 4.1 68.8 1.0
N B:GLY53 4.2 48.8 1.0
O3G B:ATP601 4.2 66.4 1.0
CA B:THR30 4.3 55.1 1.0
O2A B:ATP601 4.4 84.5 1.0
O B:HOH939 4.4 68.7 1.0
NZ B:LYS51 4.4 64.1 1.0
N B:MET31 4.5 61.8 1.0
PB B:ATP601 4.6 65.8 1.0
CG2 B:THR90 4.6 51.7 1.0
CA B:ASP52 4.6 69.5 1.0
CA B:MET31 4.6 56.0 1.0
CG B:LYS51 4.7 59.7 1.0
C B:ASP52 4.7 70.9 1.0
N B:ASP52 4.7 76.5 1.0
CE B:LYS51 4.7 68.5 1.0
CD B:LYS51 4.8 64.4 1.0
CA B:GLY53 4.9 46.9 1.0
O B:HOH764 4.9 71.6 1.0
O5' B:ATP601 4.9 68.6 1.0
CG2 B:THR30 4.9 54.0 1.0
CA B:LYS51 5.0 58.7 1.0
CB B:LYS51 5.0 68.3 1.0

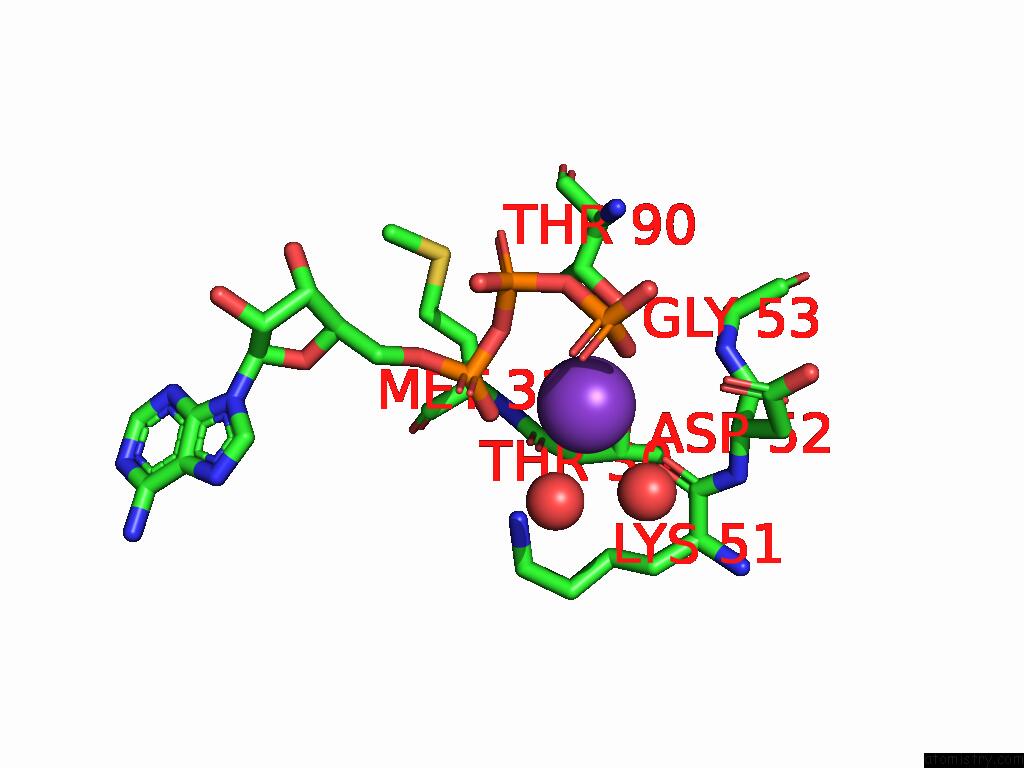

Potassium binding site 3 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1
Potassium binding site 3 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 3 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
C:K603

b:74.5
occ:1.00
 O2G C:ATP601 2.7 72.2 1.0
O C:LYS51 2.7 81.4 1.0
O C:THR30 2.7 74.8 1.0
O1A C:ATP601 2.8 74.2 1.0
OG1 C:THR30 2.8 52.1 1.0
OG1 C:THR90 3.2 70.7 1.0
O3A C:ATP601 3.5 65.4 1.0
C C:THR30 3.6 62.0 1.0
PA C:ATP601 3.6 85.5 1.0
CB C:THR30 3.6 53.6 1.0
NZ C:LYS51 3.8 60.4 1.0
PG C:ATP601 3.9 83.6 1.0
C C:LYS51 3.9 72.5 1.0
CB C:THR90 4.1 58.4 1.0
O3B C:ATP601 4.2 70.7 1.0
N C:GLY53 4.2 49.0 1.0
O3G C:ATP601 4.2 65.2 1.0
CA C:THR30 4.3 52.3 1.0
O2A C:ATP601 4.4 84.9 1.0
CG C:LYS51 4.5 59.6 1.0
N C:MET31 4.5 58.5 1.0
O C:HOH947 4.5 70.7 1.0
CA C:MET31 4.6 56.8 1.0
CG2 C:THR90 4.6 57.3 1.0
PB C:ATP601 4.6 63.2 1.0
CA C:ASP52 4.6 71.3 1.0
C C:ASP52 4.7 71.2 1.0
N C:ASP52 4.7 78.9 1.0
CA C:GLY53 4.9 51.5 1.0
CB C:LYS51 4.9 63.4 1.0
CG2 C:THR30 4.9 56.1 1.0
CA C:LYS51 4.9 59.2 1.0
O5' C:ATP601 4.9 63.6 1.0
O C:HOH773 5.0 74.3 1.0

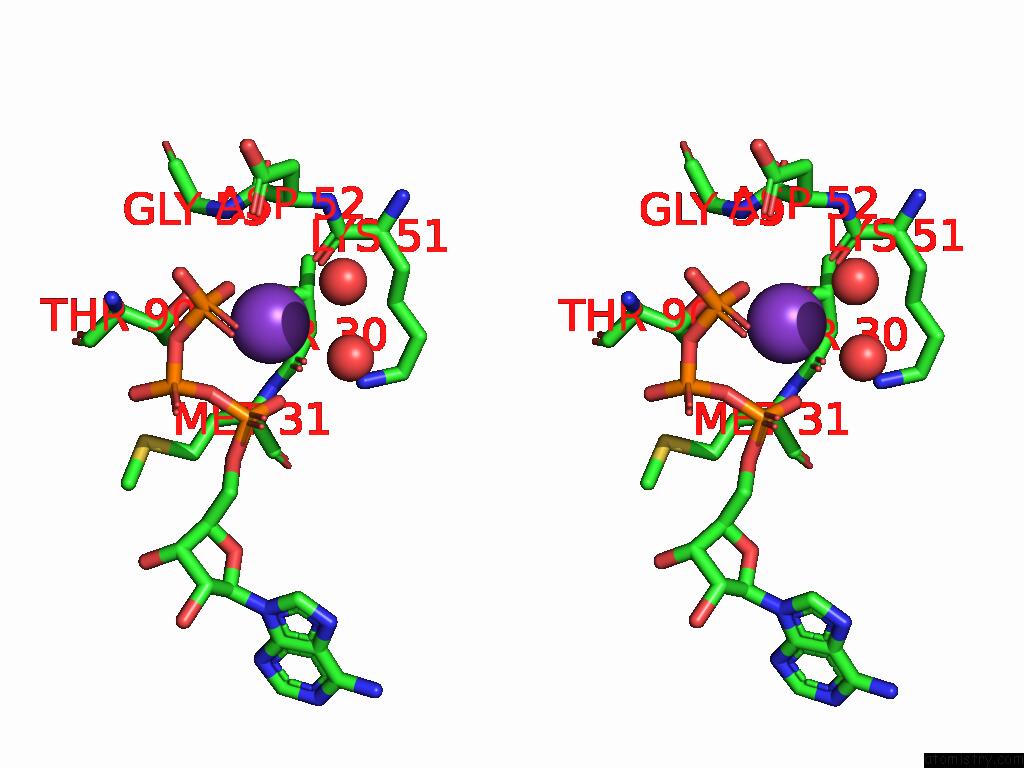

Potassium binding site 4 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1

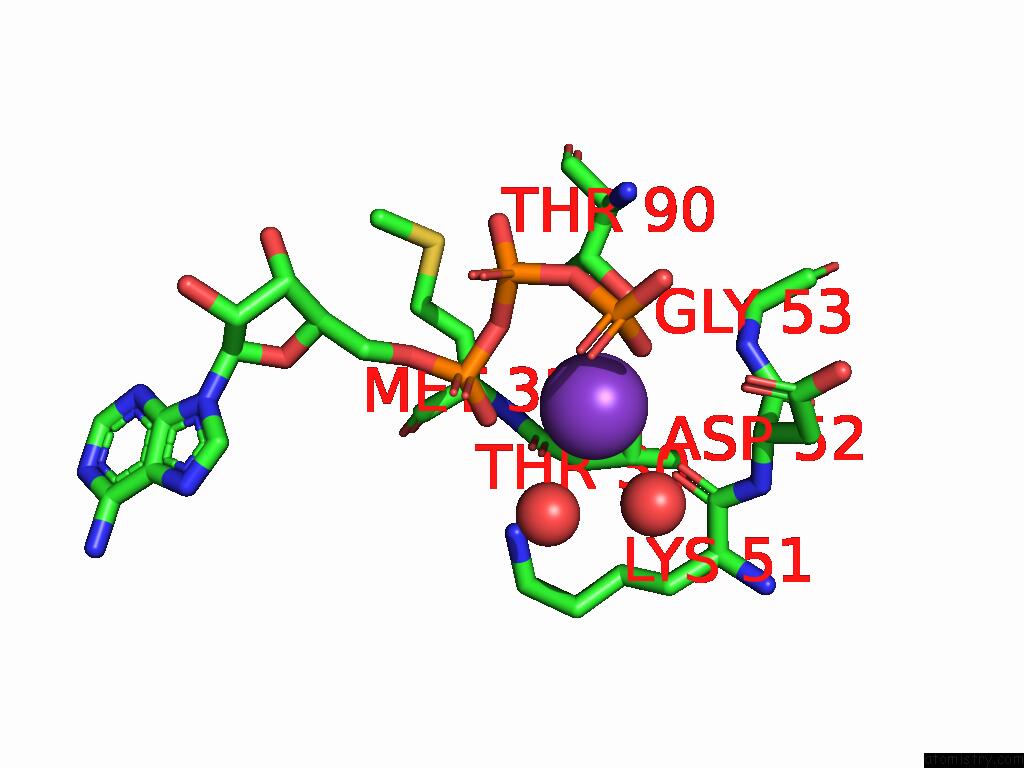

Potassium binding site 4 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 4 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
D:K603

b:75.1
occ:1.00
 O2G D:ATP601 2.7 72.3 1.0
O D:LYS51 2.7 78.7 1.0
O D:THR30 2.7 74.5 1.0
O1A D:ATP601 2.8 75.9 1.0
OG1 D:THR30 2.8 53.8 1.0
OG1 D:THR90 3.2 71.4 1.0
O3A D:ATP601 3.4 60.8 1.0
PA D:ATP601 3.6 82.4 1.0
C D:THR30 3.6 64.1 1.0
CB D:THR30 3.7 54.1 1.0
NZ D:LYS51 3.9 61.0 1.0
PG D:ATP601 3.9 81.5 1.0
C D:LYS51 4.0 73.0 1.0
CB D:THR90 4.1 57.8 1.0
O3B D:ATP601 4.1 70.3 1.0
N D:GLY53 4.2 48.2 1.0
O3G D:ATP601 4.2 65.5 1.0
CA D:THR30 4.3 53.1 1.0
O2A D:ATP601 4.4 83.8 1.0
N D:MET31 4.5 63.3 1.0
CG D:LYS51 4.5 57.4 1.0
O D:HOH918 4.5 71.0 1.0
PB D:ATP601 4.5 66.9 1.0
CG2 D:THR90 4.6 56.3 1.0
CA D:MET31 4.6 56.3 1.0
CA D:ASP52 4.6 68.3 1.0
C D:ASP52 4.7 70.8 1.0
N D:ASP52 4.8 77.1 1.0
O D:HOH772 4.9 72.2 1.0
CA D:GLY53 4.9 48.6 1.0
CG2 D:THR30 4.9 55.5 1.0
O5' D:ATP601 4.9 65.6 1.0
CB D:LYS51 5.0 64.1 1.0
CA D:LYS51 5.0 62.1 1.0

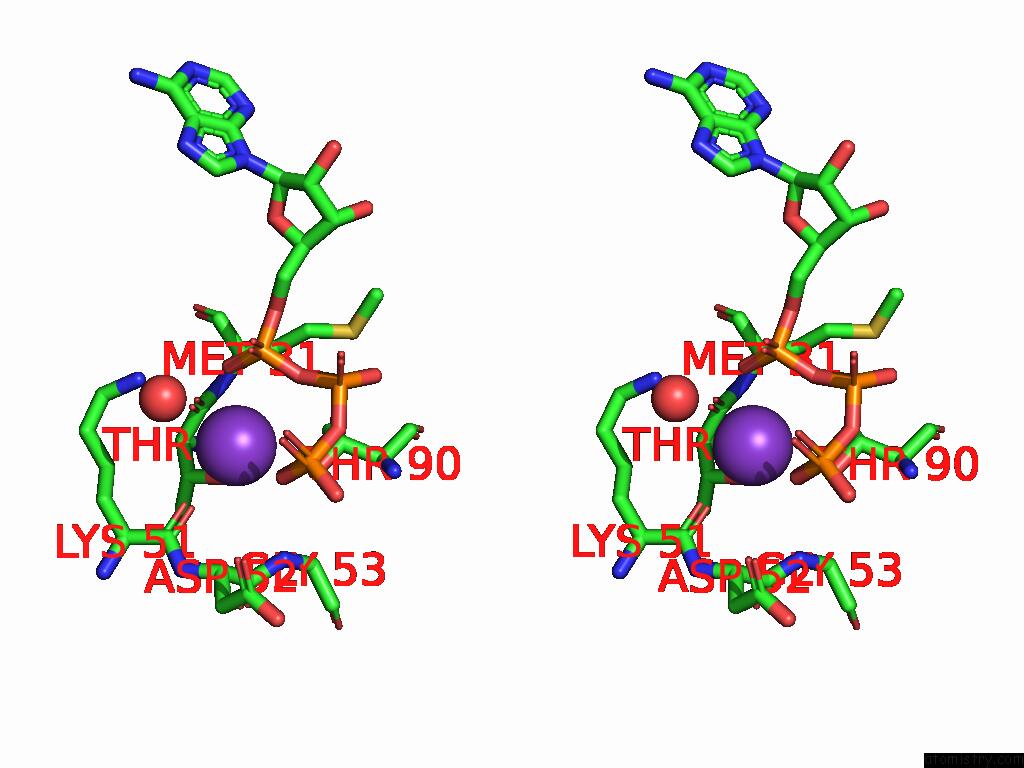

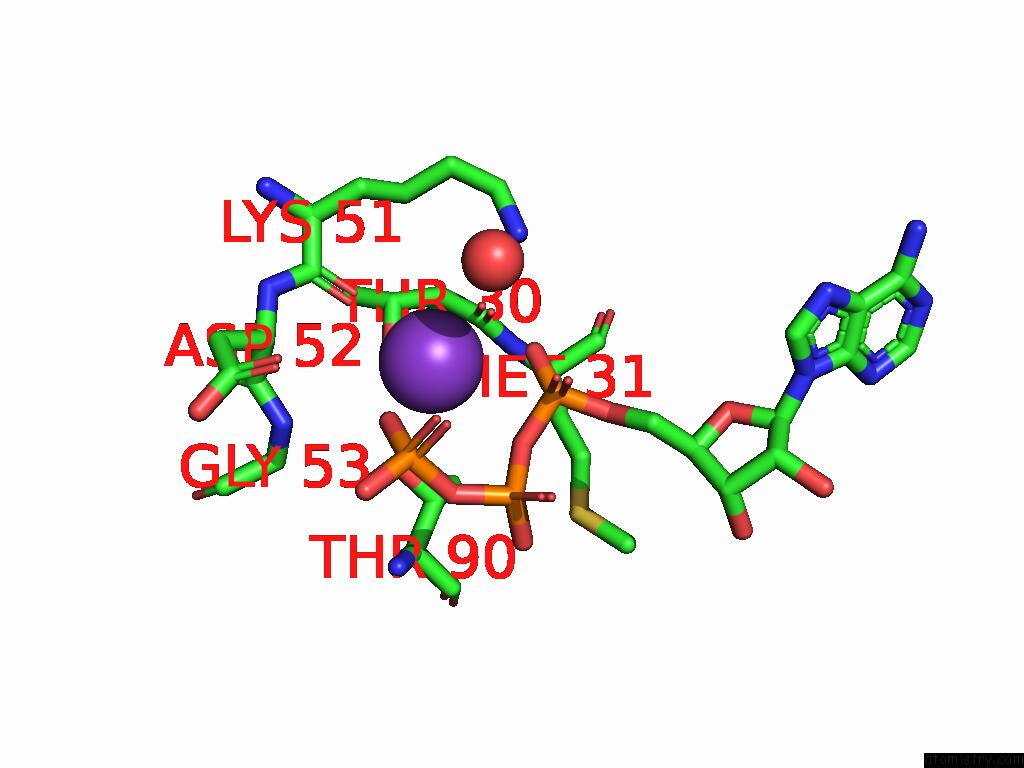

Potassium binding site 5 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1
Potassium binding site 5 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 5 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
E:K603

b:81.0
occ:1.00
 O2G E:ATP601 2.7 74.1 1.0
O E:LYS51 2.7 82.7 1.0
OG1 E:THR30 2.7 53.5 1.0
O E:THR30 2.7 75.0 1.0
O1A E:ATP601 2.8 72.5 1.0
OG1 E:THR90 3.1 71.0 1.0
O3A E:ATP601 3.5 62.1 1.0
C E:THR30 3.5 64.9 1.0
CB E:THR30 3.6 56.3 1.0
PA E:ATP601 3.6 86.3 1.0
C E:LYS51 4.0 74.8 1.0
PG E:ATP601 4.0 84.5 1.0
CB E:THR90 4.0 54.7 1.0
NZ E:LYS51 4.1 63.7 1.0
O3B E:ATP601 4.2 68.6 1.0
CA E:THR30 4.2 56.6 1.0
N E:GLY53 4.3 48.2 1.0
O3G E:ATP601 4.3 67.4 1.0
N E:MET31 4.4 60.0 1.0
O2A E:ATP601 4.4 85.4 1.0
CG2 E:THR90 4.5 53.5 1.0
CA E:MET31 4.5 55.5 1.0
CG E:LYS51 4.5 58.5 1.0
PB E:ATP601 4.6 60.0 1.0
CA E:ASP52 4.7 69.3 1.0
C E:ASP52 4.7 71.2 1.0
O E:HOH890 4.7 67.5 1.0
N E:ASP52 4.8 79.5 1.0
CG2 E:THR30 4.9 55.1 1.0
CA E:GLY53 4.9 51.2 1.0
CB E:LYS51 4.9 64.2 1.0
O5' E:ATP601 4.9 66.1 1.0
CA E:LYS51 4.9 63.7 1.0
CE E:LYS51 5.0 68.4 1.0

Potassium binding site 6 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1

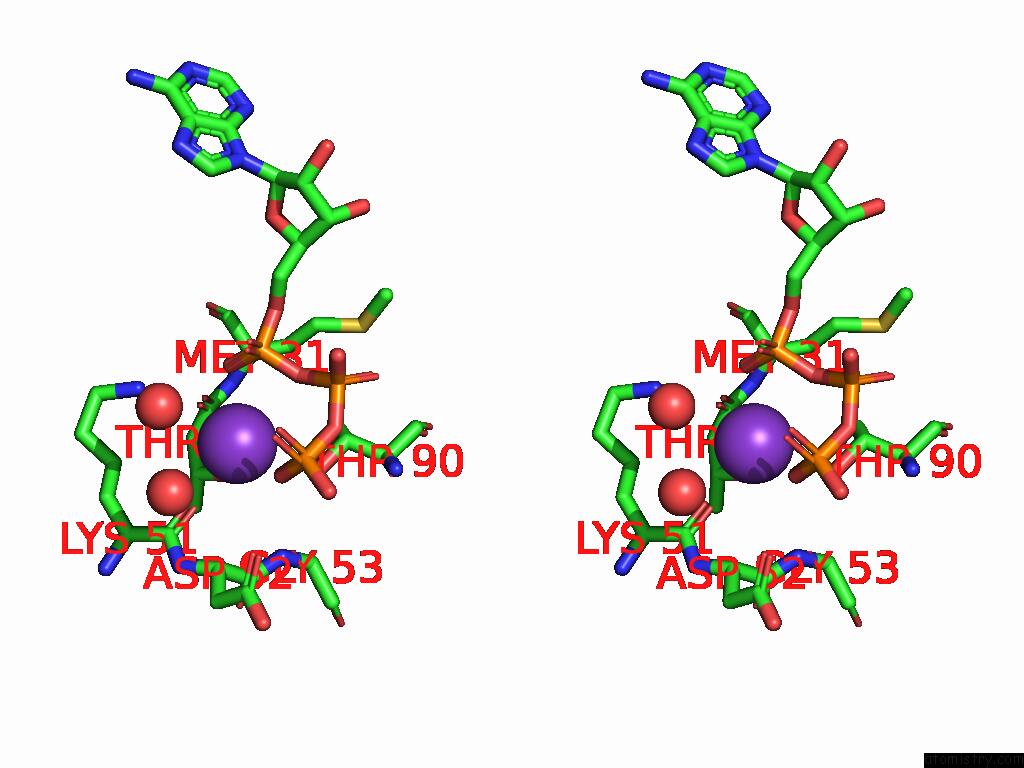

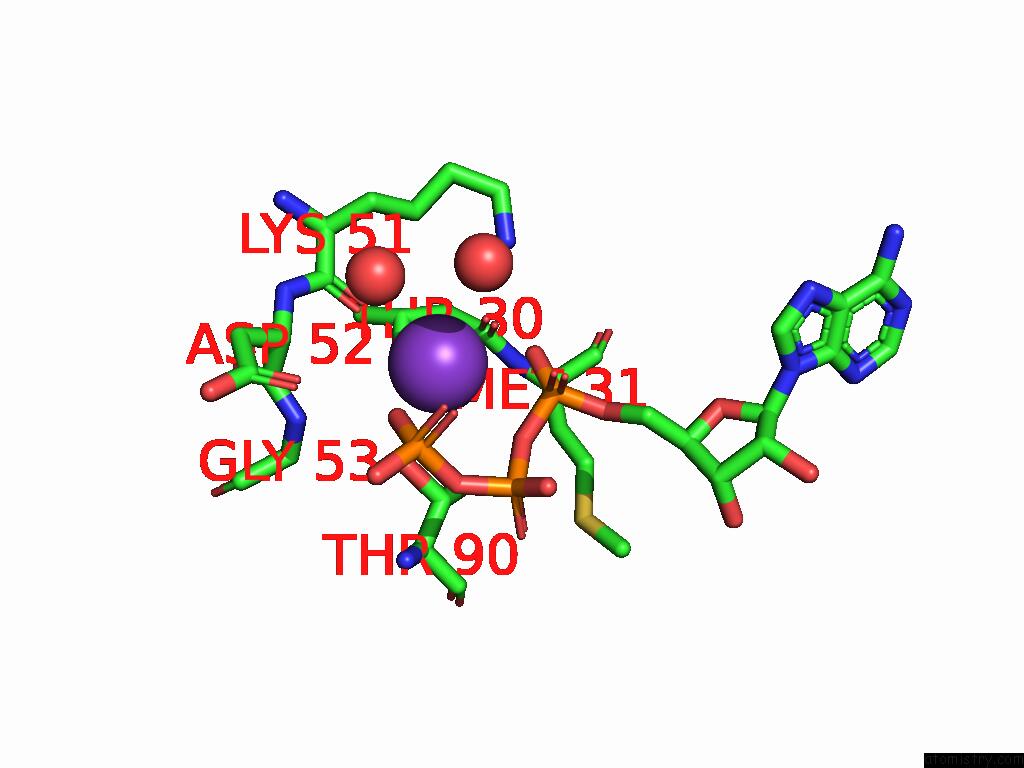

Potassium binding site 6 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 6 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
F:K603

b:82.7
occ:1.00
 O F:LYS51 2.7 81.1 1.0
O2G F:ATP601 2.7 67.0 1.0
O1A F:ATP601 2.7 78.0 1.0
O F:THR30 2.7 70.8 1.0
OG1 F:THR30 2.8 48.9 1.0
OG1 F:THR90 3.2 66.9 1.0
O3A F:ATP601 3.4 64.2 1.0
C F:THR30 3.6 61.7 1.0
PA F:ATP601 3.6 87.8 1.0
CB F:THR30 3.6 50.4 1.0
C F:LYS51 3.9 70.0 1.0
PG F:ATP601 3.9 80.2 1.0
NZ F:LYS51 4.0 59.6 1.0
CB F:THR90 4.1 51.1 1.0
O3B F:ATP601 4.2 71.4 1.0
CA F:THR30 4.2 54.2 1.0
N F:GLY53 4.3 55.6 1.0
O3G F:ATP601 4.3 65.4 1.0
O2A F:ATP601 4.4 84.4 1.0
CG F:LYS51 4.4 65.4 1.0
N F:MET31 4.4 59.9 1.0
CG2 F:THR90 4.5 53.1 1.0
CA F:MET31 4.6 54.8 1.0
O F:HOH917 4.6 69.4 1.0
PB F:ATP601 4.6 61.0 1.0
CA F:ASP52 4.7 73.0 1.0
C F:ASP52 4.7 76.8 1.0
N F:ASP52 4.8 77.1 1.0
CB F:LYS51 4.9 66.6 1.0
CA F:GLY53 4.9 51.9 1.0
CG2 F:THR30 4.9 53.8 1.0
CA F:LYS51 4.9 60.9 1.0
O5' F:ATP601 4.9 62.6 1.0
O F:HOH765 5.0 78.6 1.0

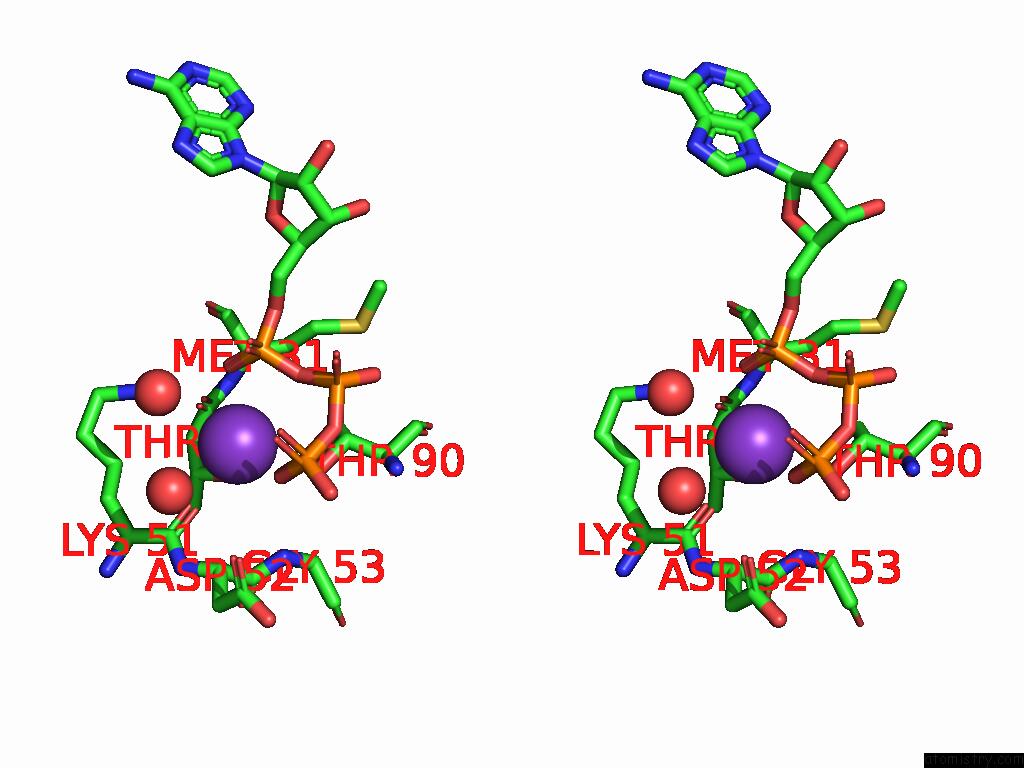

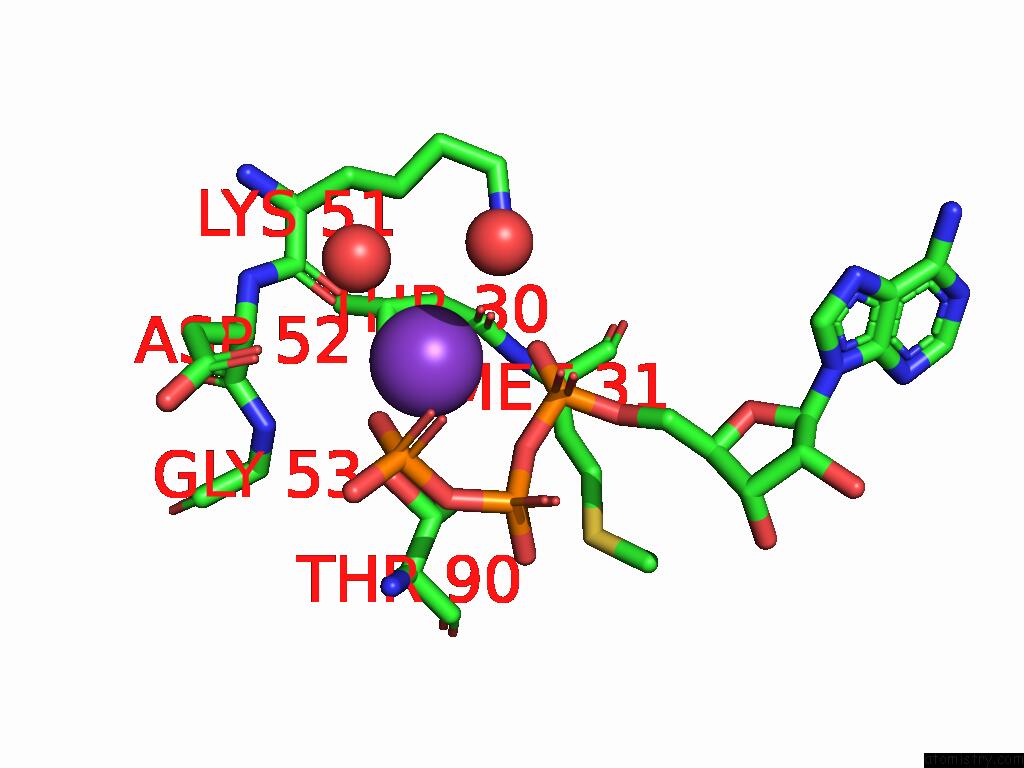

Potassium binding site 7 out of 7 in 9es1

Go back to Potassium Binding Sites List in 9es1
Potassium binding site 7 out of 7 in the Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 7 of Atp-Bound Human Mitochondrial HSP60-HSP10 Half Football Complex within 5.0Å range:
probe atom residue distance (Å) B Occ
G:K603

b:79.6
occ:1.00
 O2G G:ATP601 2.7 74.8 1.0
O G:LYS51 2.7 83.7 1.0
O G:THR30 2.7 74.9 1.0
O1A G:ATP601 2.8 76.3 1.0
OG1 G:THR30 2.8 56.2 1.0
OG1 G:THR90 3.2 67.8 1.0
O3A G:ATP601 3.5 64.6 1.0
C G:THR30 3.6 64.1 1.0
PA G:ATP601 3.6 86.7 1.0
CB G:THR30 3.6 53.1 1.0
NZ G:LYS51 3.9 65.8 1.0
PG G:ATP601 3.9 83.4 1.0
C G:LYS51 4.0 76.9 1.0
CB G:THR90 4.1 53.9 1.0
O3B G:ATP601 4.2 69.7 1.0
CA G:THR30 4.2 54.6 1.0
N G:GLY53 4.3 56.1 1.0
O3G G:ATP601 4.3 67.6 1.0
CG G:LYS51 4.4 64.6 1.0
O2A G:ATP601 4.4 84.9 1.0
N G:MET31 4.4 61.8 1.0
CA G:MET31 4.5 56.8 1.0
CG2 G:THR90 4.5 54.1 1.0
PB G:ATP601 4.6 65.7 1.0
O G:HOH867 4.7 69.4 1.0
CA G:ASP52 4.7 69.9 1.0
C G:ASP52 4.7 75.6 1.0
N G:ASP52 4.8 81.8 1.0
CB G:LYS51 4.9 67.3 1.0
CA G:GLY53 4.9 53.8 1.0
CG2 G:THR30 4.9 58.1 1.0
CA G:LYS51 4.9 63.3 1.0
O5' G:ATP601 4.9 69.9 1.0
O G:HOH748 5.0 75.1 1.0

Reference:

I.Tascon, J.P.Lopez-Alonso, I.Ubarretxena-Belandia, J.Vilchez, Y.Shkolnisky, A.Azem, J.Hirsch. Structural Basis For Atp-Triggered Assembly of Human Mitochondrial HSP60-HSP10 Chaperonin To Be Published.
