Potassium in PDB 9ibe: D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride

Protein crystallography data

The structure of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride, PDB code: 9ibe was solved by P.J.Baker, J.R.Barrett, A.A.A.B.Dakhil, J.Domenech, C.Bisson, N.Pramanpol, J.Ferrer, D.W.Rice, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 52.28 / 1.26
Space group P 1
Cell size a, b, c (Å), α, β, γ (°) 66.633, 75.34, 78.234, 108.84, 108.08, 95.53
R / Rfree (%) 15.2 / 18.8

Other elements in 9ibe:

The structure of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride also contains other interesting chemical elements:

Chlorine (Cl) 5 atoms
Magnesium (Mg) 12 atoms

Potassium Binding Sites:

Pages:

>>> Page 1 <<< Page 2, Binding sites: 11 - 20; Page 3, Binding sites: 21 - 24;

Binding sites:

The binding sites of Potassium atom in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride (pdb code 9ibe). This binding sites where shown within 5.0 Angstroms radius around Potassium atom.
In total 24 binding sites of Potassium where determined in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride, PDB code: 9ibe:
Jump to Potassium binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10;

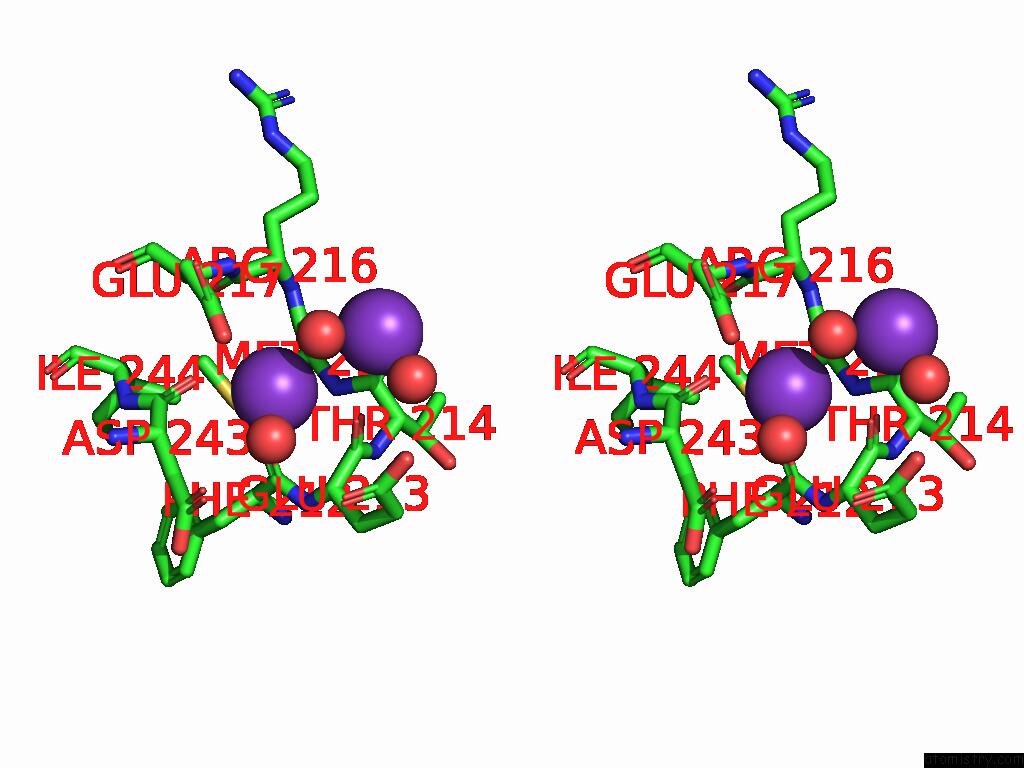

Potassium binding site 1 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

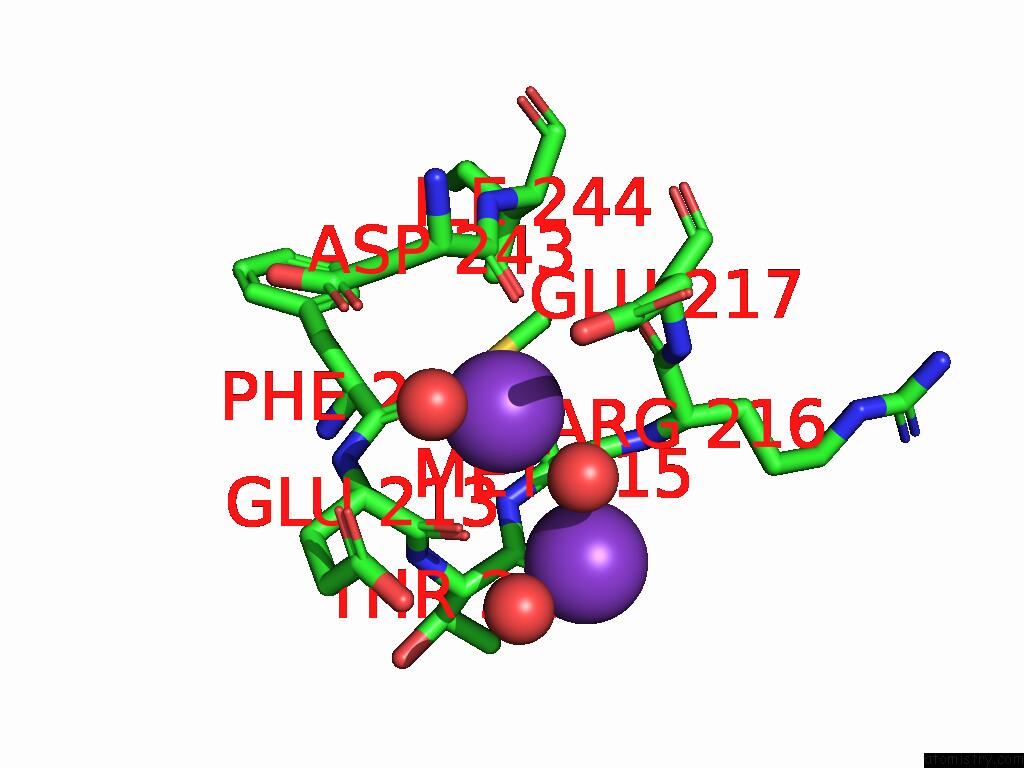

Potassium binding site 1 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 1 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K403

b:13.1
occ:1.00
 O A:MET215 2.6 12.4 1.0
O A:ASP243 2.7 11.6 1.0
O A:PHE212 2.7 12.3 1.0
O A:HOH603 2.7 20.8 1.0
O A:HOH794 2.8 24.7 1.0
O A:GLU213 2.9 11.9 1.0
C A:GLU213 3.5 11.3 1.0
C A:ASP243 3.7 10.9 1.0
C A:MET215 3.7 10.9 1.0
CA A:GLU213 3.8 12.7 1.0
C A:PHE212 3.8 10.8 1.0
K A:K404 3.9 23.0 1.0
CA A:ASP243 4.1 14.4 1.0
CG A:GLU217 4.1 21.3 1.0
CB A:ASP243 4.2 18.0 1.0
N A:GLU213 4.3 11.2 1.0
C A:ARG216 4.3 11.8 1.0
N A:GLU217 4.3 11.7 1.0
N A:MET215 4.3 11.0 1.0
CA A:MET215 4.5 11.4 1.0
N A:THR214 4.5 11.2 1.0
O A:HOH586 4.6 35.6 1.0
O A:ARG216 4.6 11.1 1.0
CA A:GLU217 4.6 13.6 1.0
C A:THR214 4.6 12.4 1.0
N A:ARG216 4.7 11.3 1.0
OE1 A:GLU213 4.7 25.8 1.0
CG2 A:ILE244 4.8 12.3 1.0
CA A:ARG216 4.8 11.4 1.0
OD1 A:ASP243 4.8 24.0 1.0
CB A:MET215 4.8 9.7 1.0
N A:ILE244 4.8 12.6 1.0
CD A:GLU213 4.9 27.6 1.0
CG A:ASP243 4.9 23.8 1.0

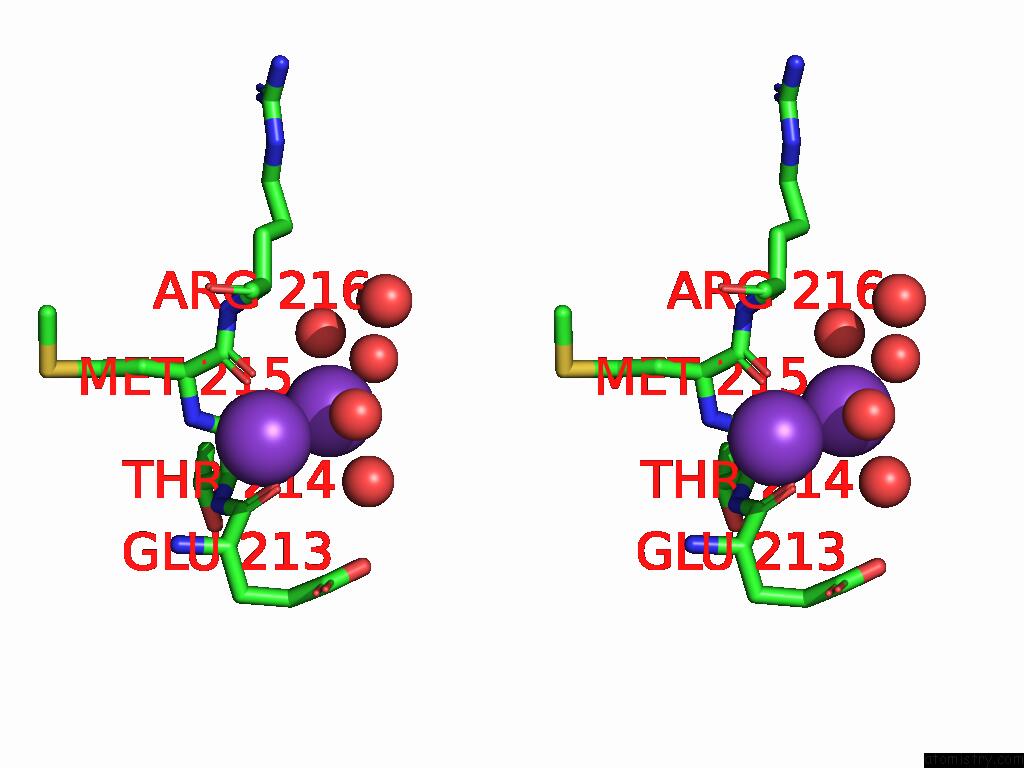

Potassium binding site 2 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe
Potassium binding site 2 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 2 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K404

b:23.0
occ:1.00
 O A:HOH586 2.4 35.6 1.0
O A:HOH794 2.7 24.7 1.0
O A:GLU213 2.9 11.9 1.0
O A:THR214 2.9 13.0 1.0
O A:MET215 2.9 12.4 1.0
O A:HOH531 3.0 22.3 1.0
O A:HOH631 3.3 27.6 1.0
C A:THR214 3.4 12.4 1.0
O A:HOH872 3.7 56.3 1.0
C A:MET215 3.7 10.9 1.0
K A:K403 3.9 13.1 1.0
C A:GLU213 4.0 11.3 1.0
CA A:THR214 4.0 10.8 1.0
N A:MET215 4.2 11.0 1.0
N A:ARG216 4.4 11.3 1.0
O A:HOH763 4.4 16.9 1.0
N A:THR214 4.4 11.2 1.0
CA A:ARG216 4.5 11.4 1.0
CA A:MET215 4.5 11.4 1.0
O A:HOH844 4.6 40.5 1.0
OE2 A:GLU213 4.9 29.5 1.0

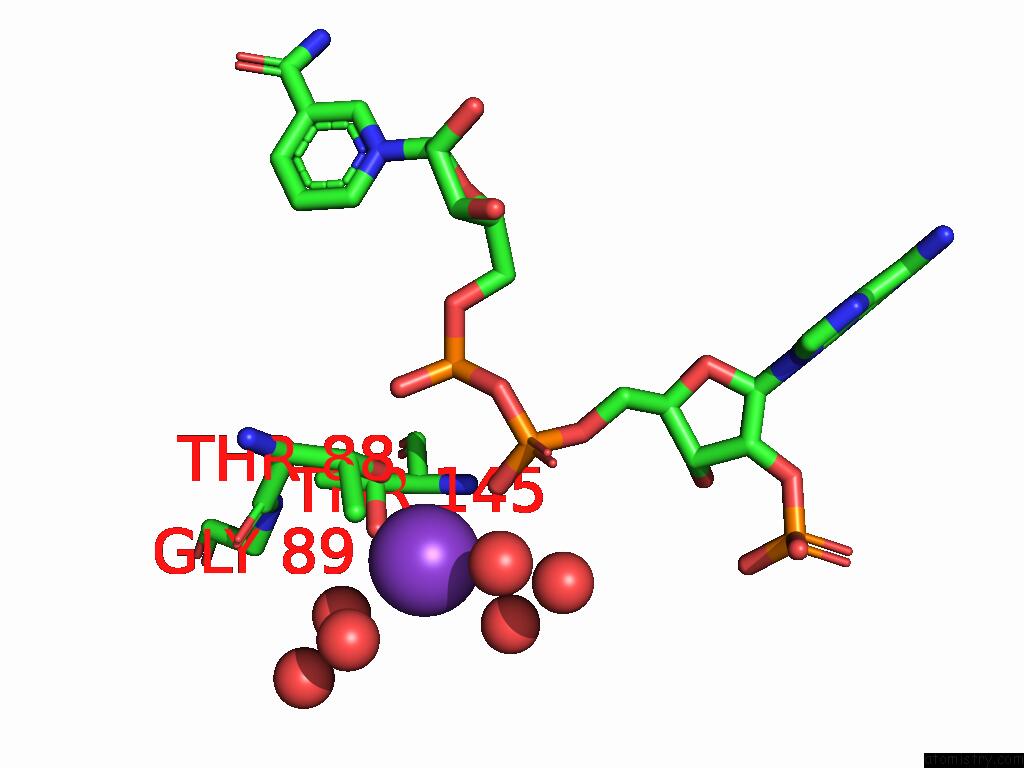

Potassium binding site 3 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

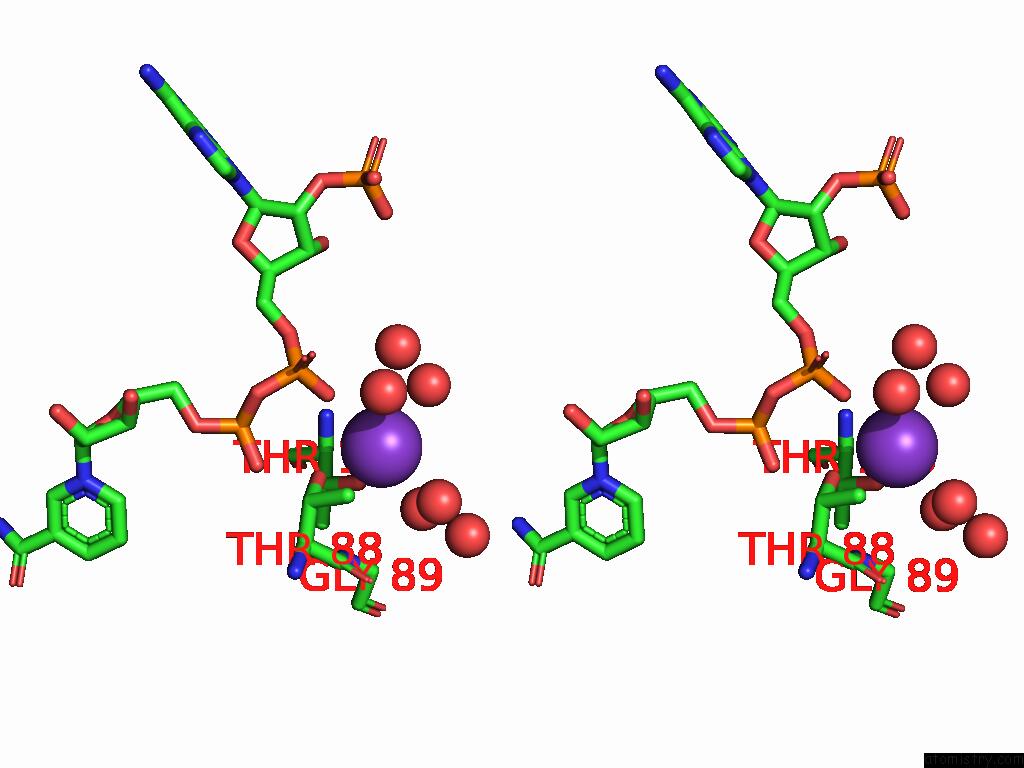

Potassium binding site 3 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 3 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K405

b:19.9
occ:1.00
 O1A A:NAP401 2.7 12.1 1.0
OG1 A:THR88 2.7 16.8 1.0
O A:HOH812 2.7 29.7 1.0
OG1 A:THR145 2.7 12.4 1.0
O A:HOH700 2.9 33.2 1.0
O A:HOH728 3.6 32.5 1.0
CB A:THR88 3.9 13.5 1.0
CB A:THR145 3.9 11.1 1.0
PA A:NAP401 3.9 11.7 1.0
CG2 A:THR88 3.9 13.9 1.0
N A:GLY89 4.0 11.1 1.0
N A:THR145 4.1 9.8 1.0
O2A A:NAP401 4.2 14.2 1.0
C A:THR88 4.3 11.7 1.0
O A:HOH781 4.3 26.4 1.0
O2N A:NAP401 4.4 10.0 1.0
CA A:GLY89 4.4 11.8 1.0
CA A:THR145 4.5 10.6 1.0
O A:HOH690 4.6 26.2 1.0
O3 A:NAP401 4.6 11.7 1.0
CA A:THR88 4.7 13.2 1.0
O A:HOH837 4.7 43.4 1.0
O A:THR88 4.9 13.9 1.0
PN A:NAP401 5.0 10.8 1.0

Potassium binding site 4 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

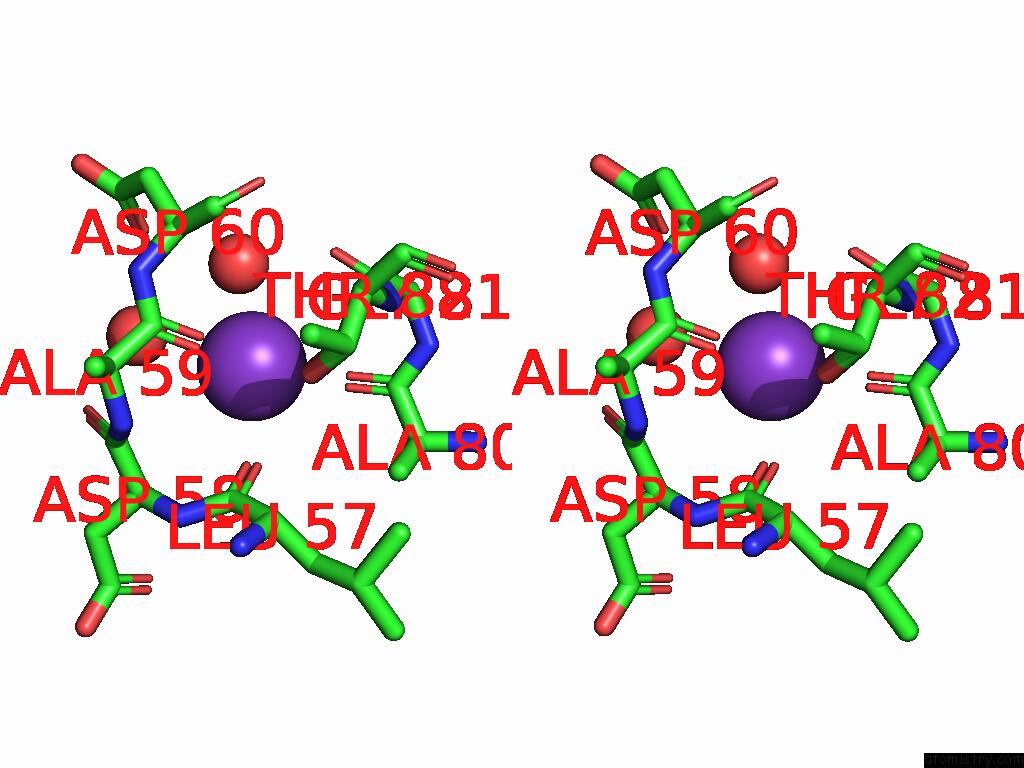

Potassium binding site 4 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 4 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K406

b:36.3
occ:1.00
 O A:ALA59 2.7 28.6 1.0
O A:LEU57 2.7 29.5 1.0
O A:HOH567 2.7 42.1 1.0
O A:ALA80 2.8 37.6 1.0
OG1 A:THR82 2.9 31.9 1.0
O A:HOH509 3.1 44.5 1.0
O A:GLY81 3.6 37.7 1.0
C A:ALA59 3.8 28.2 1.0
C A:LEU57 3.9 28.8 1.0
C A:ALA80 3.9 35.5 1.0
C A:GLY81 3.9 36.5 1.0
C A:ASP58 4.1 29.2 1.0
N A:THR82 4.1 32.3 1.0
CB A:THR82 4.2 27.8 1.0
O A:ASP58 4.3 29.1 1.0
CA A:ASP58 4.4 28.9 1.0
CA A:THR82 4.4 27.7 1.0
N A:ALA59 4.4 31.5 1.0
OD1 A:ASP60 4.5 34.4 1.0
CA A:GLY81 4.5 39.9 1.0
N A:ASP58 4.5 28.9 1.0
CB A:ALA80 4.6 37.3 1.0
N A:ASP60 4.6 25.3 1.0
CA A:ASP60 4.6 26.6 1.0
N A:GLY81 4.6 37.3 1.0
CA A:ALA59 4.7 29.1 1.0
CA A:ALA80 4.8 36.2 1.0
CA A:LEU57 4.9 31.5 1.0

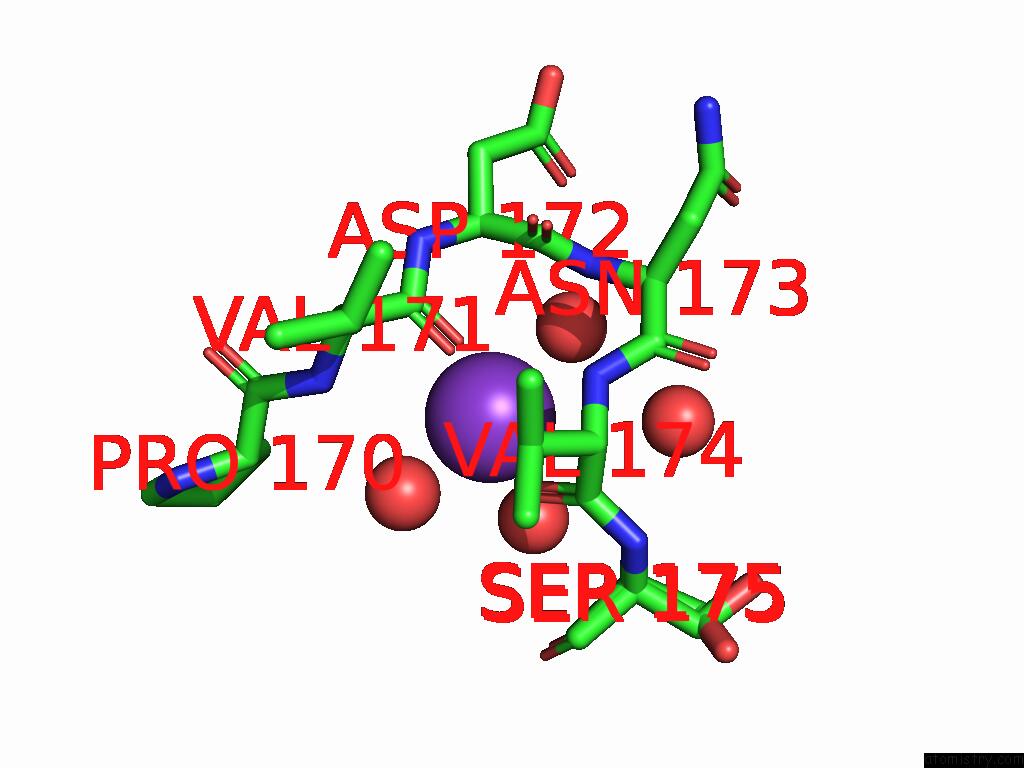

Potassium binding site 5 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

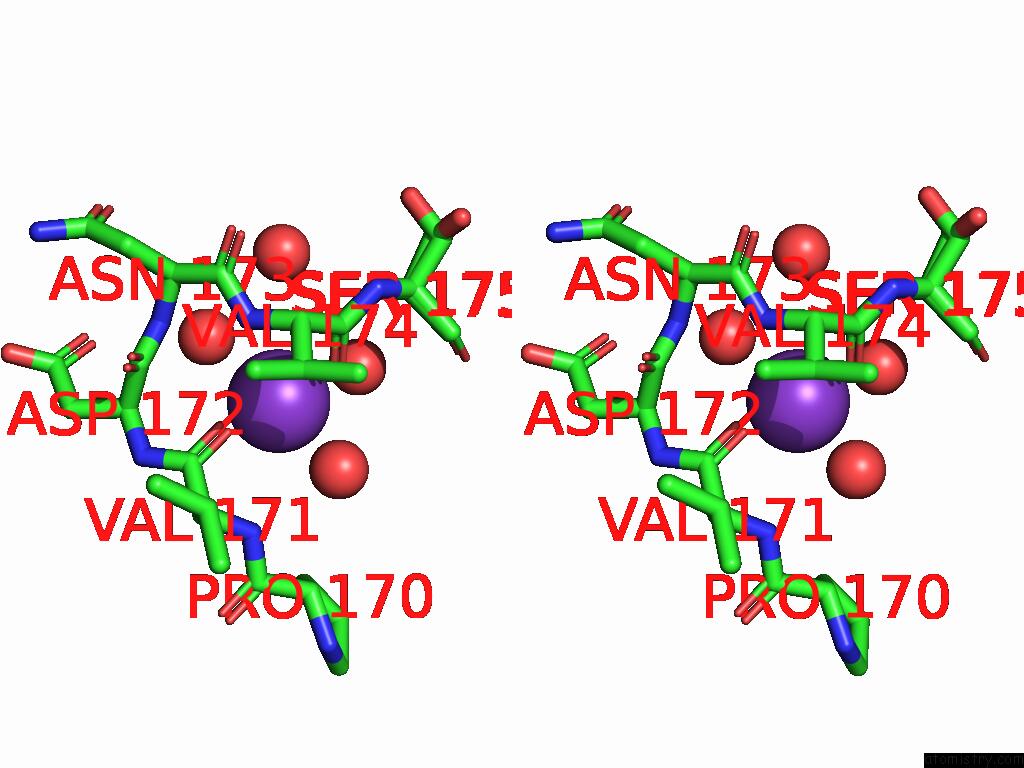

Potassium binding site 5 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 5 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K407

b:15.9
occ:1.00
 O A:HOH782 2.7 40.2 1.0
O A:VAL174 2.7 12.6 1.0
O A:HOH720 2.8 17.8 1.0
O A:VAL171 2.8 9.9 1.0
O A:HOH674 2.9 14.5 1.0
C A:VAL171 3.7 9.7 1.0
C A:VAL174 3.8 11.1 1.0
N A:VAL174 4.0 9.6 1.0
O A:HOH825 4.0 21.0 1.0
N A:ASN173 4.1 10.9 1.0
CA A:ASP172 4.2 11.6 1.0
N A:VAL171 4.3 11.1 1.0
N A:ASP172 4.3 11.2 1.0
C A:ASP172 4.4 10.1 1.0
CA A:VAL174 4.4 10.2 1.0
CA A:VAL171 4.7 10.1 1.0
N A:SER175 4.7 10.7 1.0
CA A:SER175 4.8 12.1 0.5
C A:ASN173 4.8 12.1 1.0
CA A:SER175 4.9 12.2 0.5
CB A:VAL174 4.9 9.9 1.0
CA A:ASN173 4.9 11.7 1.0
CB A:PRO170 5.0 15.3 1.0

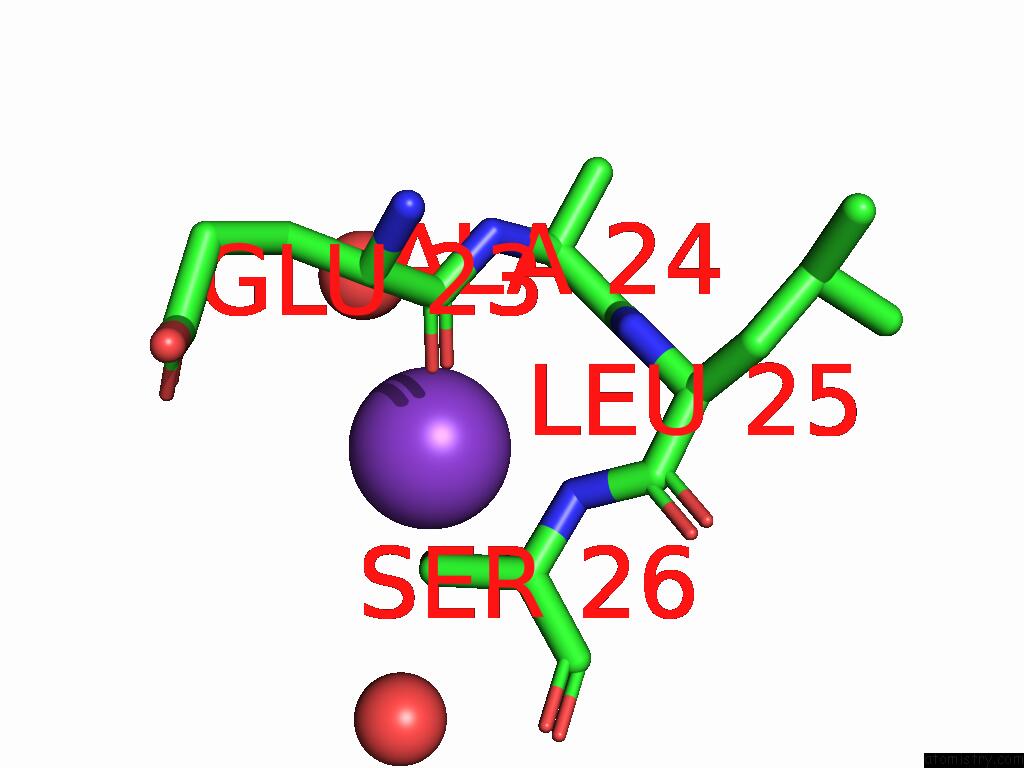

Potassium binding site 6 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

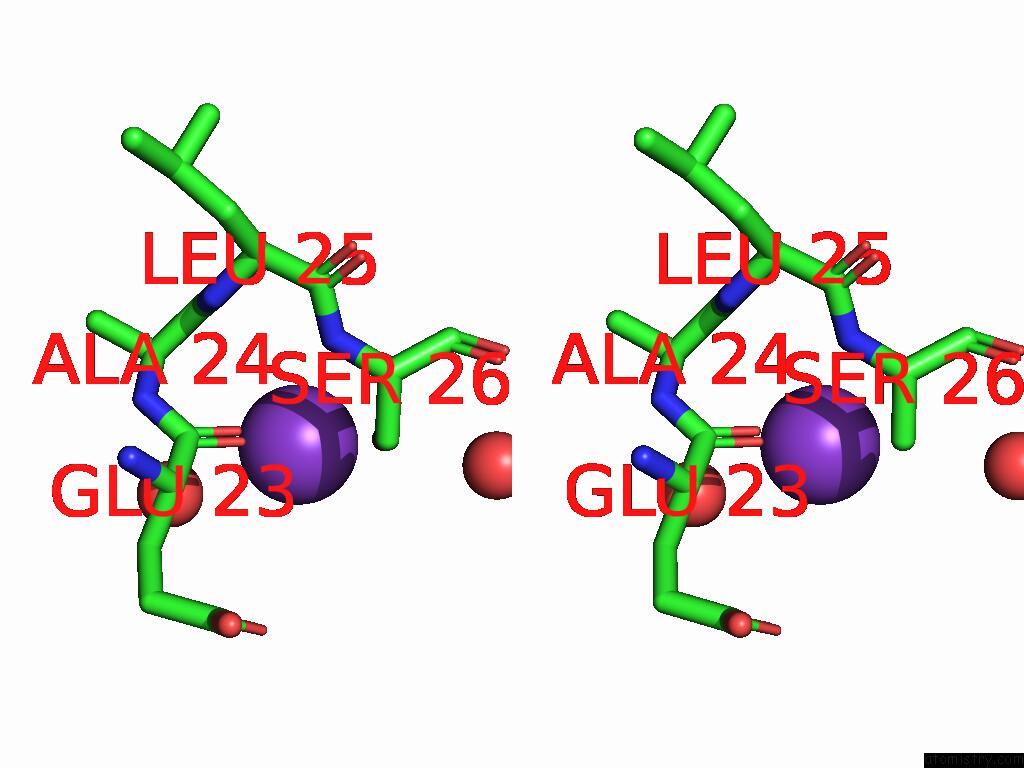

Potassium binding site 6 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 6 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K408

b:29.6
occ:0.50
 O A:GLU23 2.7 17.0 1.0
OG A:SER26 2.9 24.5 1.0
O A:HOH792 3.2 25.0 1.0
C A:GLU23 3.8 17.3 1.0
CB A:SER26 4.0 21.4 1.0
CA A:ALA24 4.2 14.5 1.0
O A:ALA24 4.2 16.0 1.0
C A:ALA24 4.3 15.1 1.0
N A:SER26 4.4 15.1 1.0
N A:ALA24 4.4 15.5 1.0
O A:HOH515 4.6 41.7 1.0
CA A:SER26 4.8 18.2 1.0
CA A:GLU23 4.9 17.0 1.0
N A:LEU25 5.0 14.8 1.0

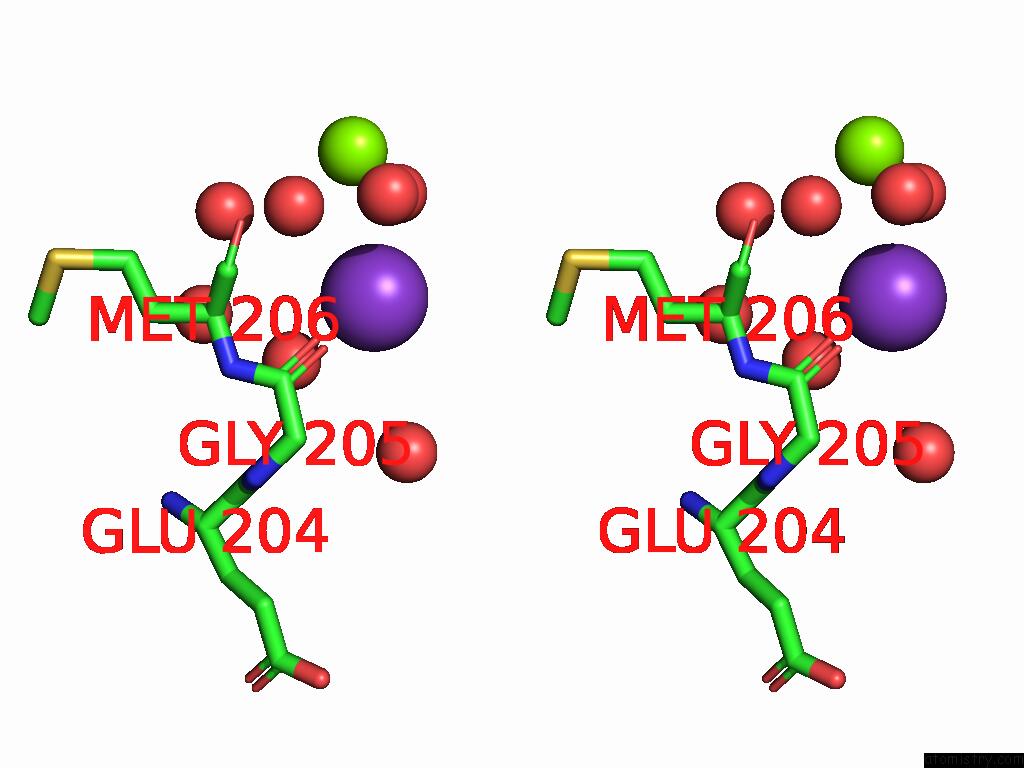

Potassium binding site 7 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

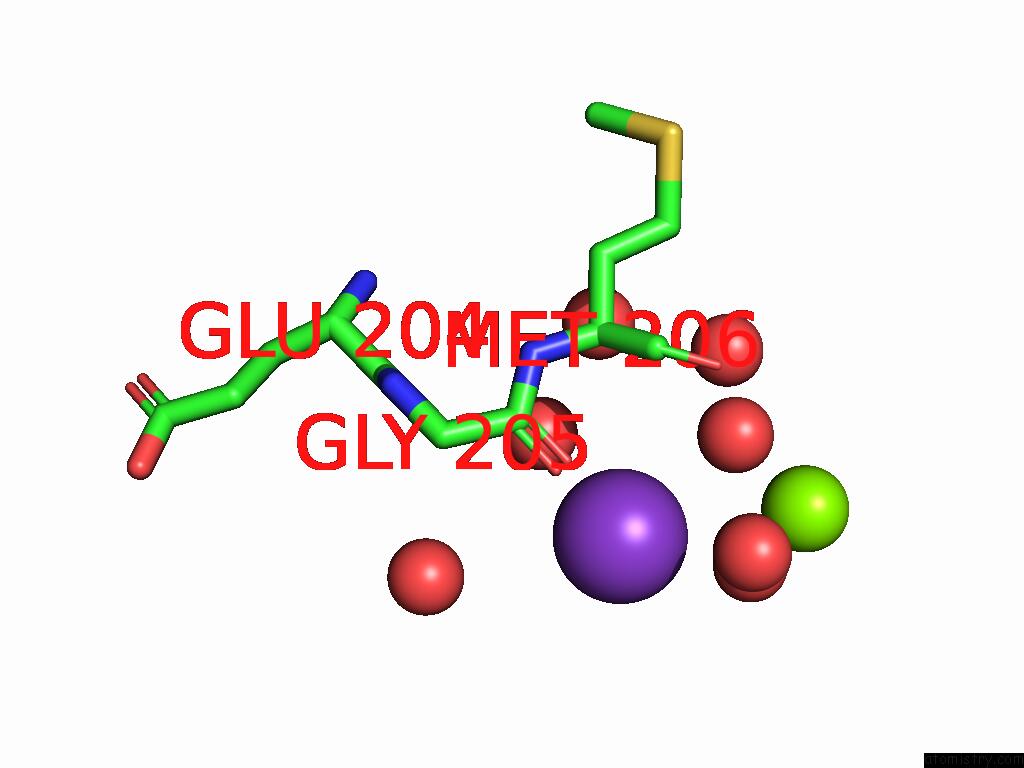

Potassium binding site 7 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 7 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
A:K409

b:17.5
occ:1.00
 O A:HOH845 2.9 11.3 1.0
O A:HOH724 2.9 11.4 1.0
O A:GLY205 3.1 11.9 1.0
O A:HOH573 3.2 10.9 1.0
O A:HOH561 3.4 10.8 1.0
MG A:MG410 3.8 10.1 1.0
C A:GLY205 4.0 9.9 1.0
O A:HOH797 4.1 22.1 1.0
CA A:MET206 4.6 9.4 1.0
O A:HOH610 4.7 16.8 1.0
N A:MET206 4.7 8.9 1.0
O A:MET206 4.7 10.0 1.0
O A:HOH860 4.8 23.8 1.0
C A:MET206 4.9 9.2 1.0
O A:GLU204 5.0 11.7 1.0
CA A:GLY205 5.0 10.8 1.0

Potassium binding site 8 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

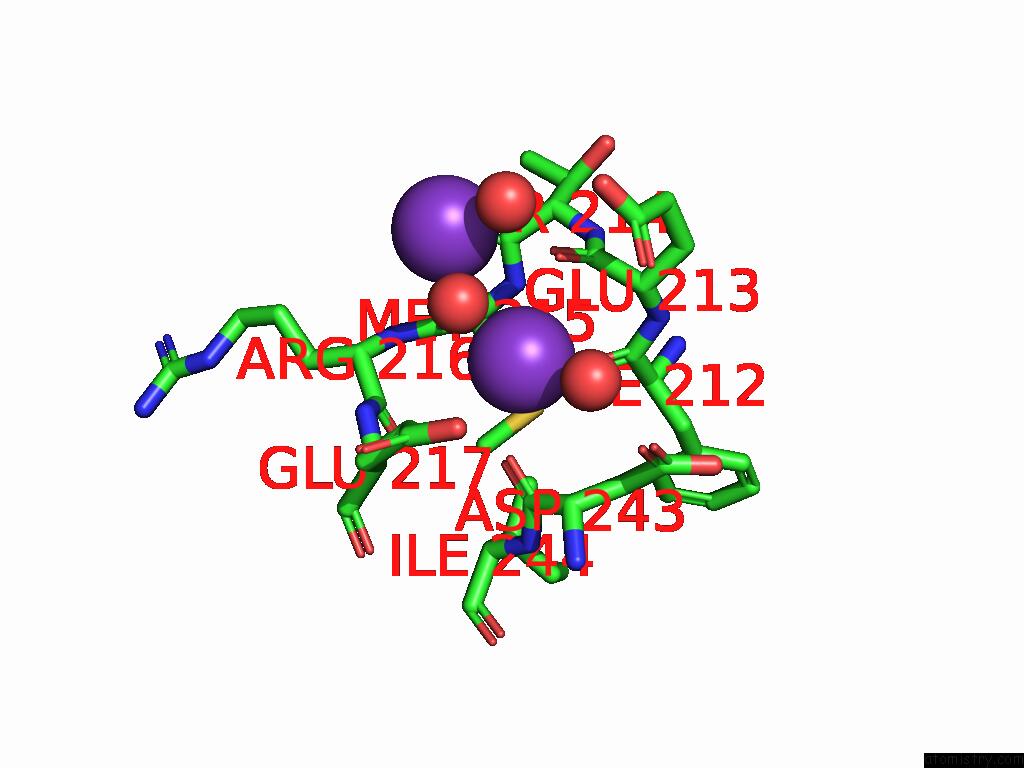

Potassium binding site 8 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 8 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
B:K403

b:13.7
occ:1.00
 O B:MET215 2.6 13.5 1.0
O B:HOH504 2.6 32.6 1.0
O B:ASP243 2.7 12.0 1.0
O B:PHE212 2.7 13.3 1.0
O B:HOH833 2.8 32.1 1.0
O B:GLU213 2.9 14.6 1.0
C B:GLU213 3.5 11.5 1.0
C B:ASP243 3.7 13.1 1.0
C B:MET215 3.7 13.4 1.0
C B:PHE212 3.8 12.2 1.0
CA B:GLU213 3.8 12.9 1.0
K B:K404 3.9 26.0 1.0
CA B:ASP243 4.1 14.7 1.0
CG B:GLU217 4.1 25.6 1.0
CB B:ASP243 4.2 16.6 1.0
N B:GLU213 4.3 12.5 1.0
N B:MET215 4.3 11.2 1.0
N B:GLU217 4.3 12.5 1.0
O B:HOH516 4.3 33.1 1.0
C B:ARG216 4.3 11.8 1.0
CA B:MET215 4.4 11.2 1.0
N B:THR214 4.5 11.8 1.0
O B:ARG216 4.5 11.2 1.0
CA B:GLU217 4.6 13.3 1.0
C B:THR214 4.6 12.7 1.0
OE1 B:GLU213 4.6 37.6 1.0
N B:ARG216 4.7 13.3 1.0
CB B:MET215 4.8 9.7 1.0
CG2 B:ILE244 4.8 12.8 1.0
OD1 B:ASP243 4.8 28.8 1.0
CG B:ASP243 4.8 30.3 1.0
N B:ILE244 4.8 13.2 1.0
CA B:ARG216 4.8 12.7 1.0
CD B:GLU213 5.0 29.7 1.0

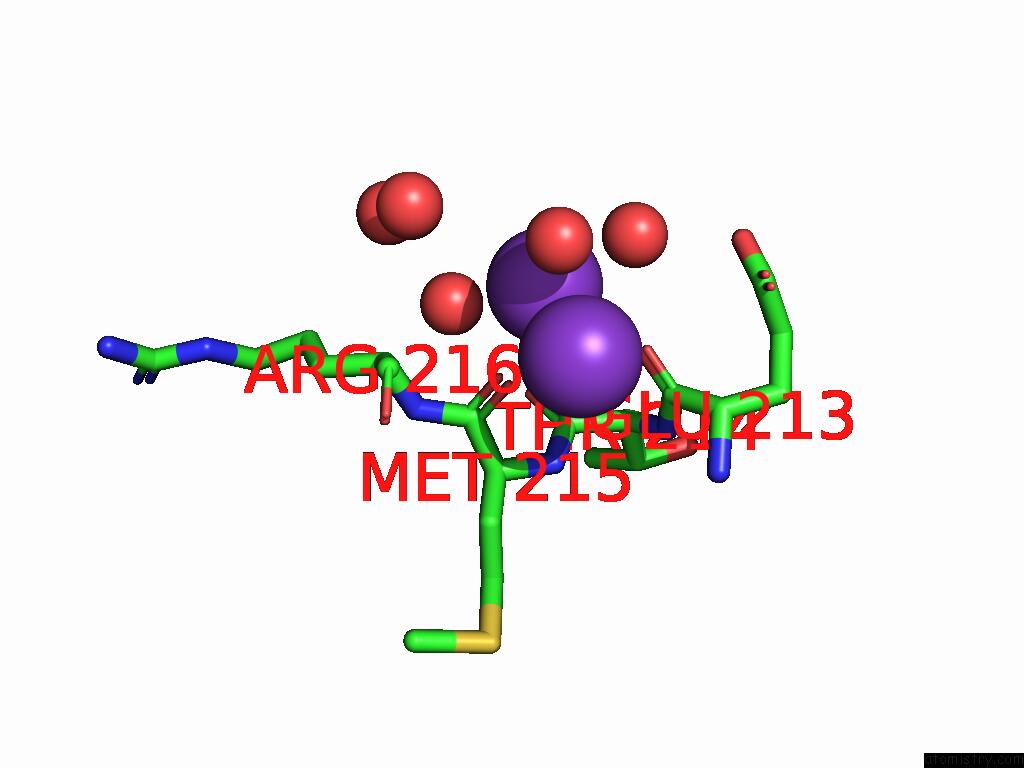

Potassium binding site 9 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe

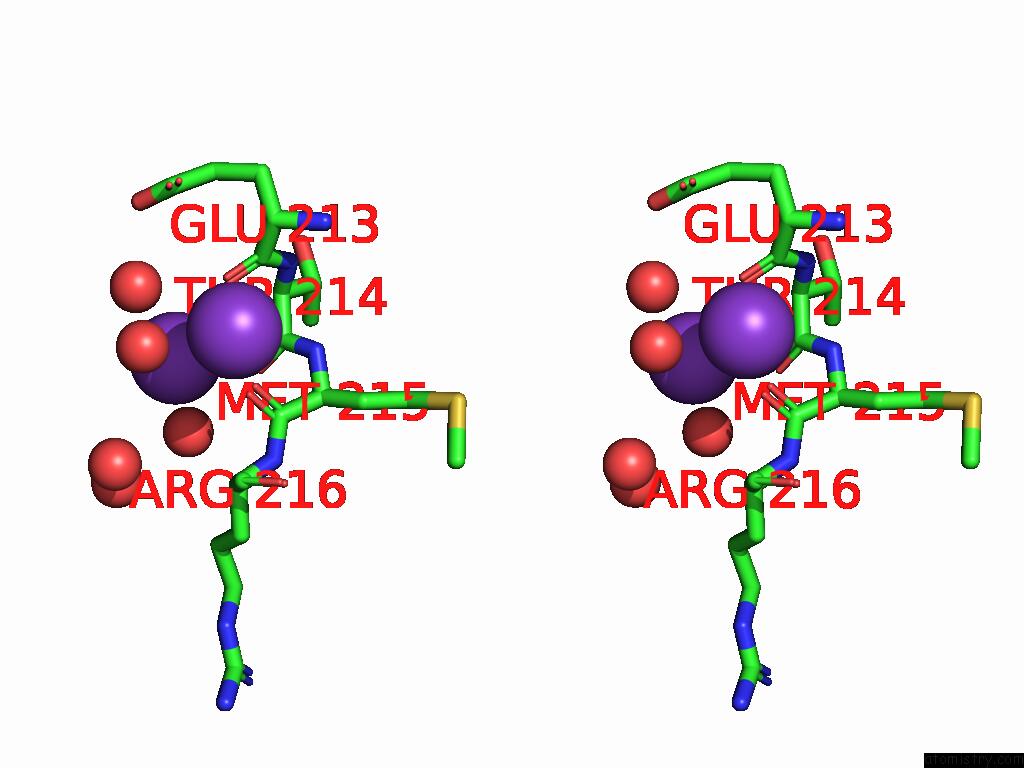

Potassium binding site 9 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 9 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
B:K404

b:26.0
occ:1.00
 O B:HOH516 2.5 33.1 1.0
O B:HOH833 2.8 32.1 1.0
O B:HOH637 2.9 23.0 1.0
O B:MET215 2.9 13.5 1.0
O B:THR214 2.9 13.4 1.0
O B:GLU213 3.0 14.6 1.0
O B:HOH636 3.3 32.5 1.0
C B:THR214 3.4 12.7 1.0
C B:MET215 3.7 13.4 1.0
K B:K403 3.9 13.7 1.0
CA B:THR214 4.0 11.3 1.0
C B:GLU213 4.1 11.5 1.0
O B:HOH798 4.2 18.8 1.0
O B:HOH923 4.2 49.0 1.0
N B:MET215 4.2 11.2 1.0
N B:ARG216 4.3 13.3 1.0
CA B:ARG216 4.5 12.7 1.0
N B:THR214 4.5 11.8 1.0
CA B:MET215 4.6 11.2 1.0
OE2 B:GLU213 4.8 31.6 1.0

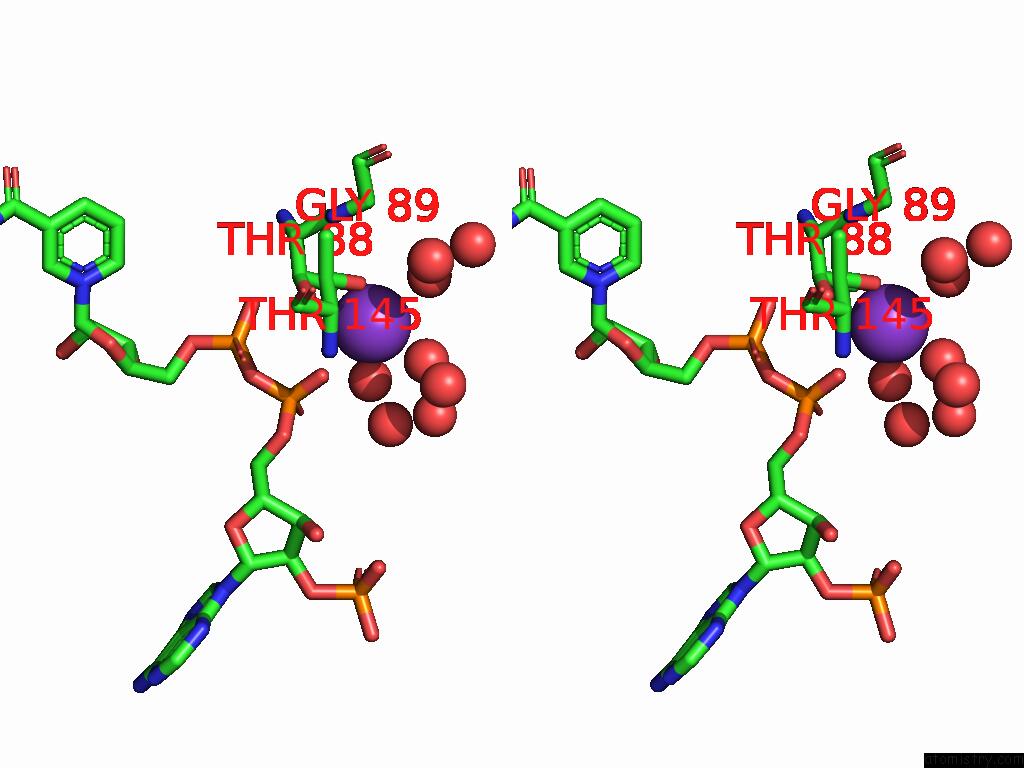

Potassium binding site 10 out of 24 in 9ibe

Go back to Potassium Binding Sites List in 9ibe
Potassium binding site 10 out of 24 in the D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 10 of D-2-Hydroxyacid Dehydrogenase (D2HDH) From Haloferax Mediterranei in Complex with Potassium, 2-Ketohexanoic Acid, Nadp+ and Chloride within 5.0Å range:
probe atom residue distance (Å) B Occ
B:K405

b:15.9
occ:1.00
 OG1 B:THR88 2.7 12.9 1.0
O B:HOH842 2.7 29.6 1.0
O1A B:NAP401 2.7 12.0 1.0
OG1 B:THR145 2.7 12.7 1.0
O B:HOH862 2.8 26.8 1.0
O B:HOH782 2.9 25.5 1.0
O B:HOH762 3.7 27.6 1.0
CG2 B:THR88 3.8 12.7 1.0
CB B:THR88 3.8 12.2 1.0
PA B:NAP401 3.9 11.3 1.0
CB B:THR145 3.9 10.6 1.0
N B:GLY89 4.0 11.3 1.0
N B:THR145 4.1 9.6 1.0
O B:HOH927 4.2 41.1 1.0
O2A B:NAP401 4.2 11.7 1.0
O2N B:NAP401 4.3 10.1 1.0
C B:THR88 4.3 11.3 1.0
CA B:GLY89 4.3 11.4 1.0
O B:HOH691 4.6 23.0 1.0
CA B:THR145 4.6 9.9 1.0
O3 B:NAP401 4.6 10.2 1.0
CA B:THR88 4.6 10.5 1.0
O B:HOH890 4.6 30.2 1.0
O B:HOH811 4.8 26.0 1.0
O B:THR88 4.8 13.5 1.0
PN B:NAP401 4.9 10.0 1.0

Reference:

J.Domenech, N.Pramanpol, C.Bisson, S.E.Sedelnikova, J.R.Barrett, A.A.A.B.Dakhil, V.Mykhaylyk, A.S.Abdelhameed, S.E.Harding, D.W.Rice, P.J.Baker, J.Ferrer. Potassium Binding By Carbonyl Clusters, Halophilic Adaptation and Catalysis of Haloferax Mediterranei D-2-Hydroxyacid Dehydrogenase. Commun Biol V. 8 1170 2025.
ISSN: ESSN 2399-3642
PubMed: 40770045
DOI: 10.1038/S42003-025-08587-7
