Potassium in PDB 9f90: Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab

The structure of Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab, PDB code: 9f90 was solved by K.M.Castro, B.E.Correia, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	61.50 / 2.91
Space group	C 1 2 1
Cell size a, b, c (Å), α, β, γ (°)	184.072, 66.859, 109.41, 90, 103.87, 90
R / Rfree (%)	22.4 / 26.2

The binding sites of Potassium atom in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab (pdb code 9f90). This binding sites where shown within 5.0 Angstroms radius around Potassium atom.
In total 4 binding sites of Potassium where determined in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab, PDB code: 9f90:
Jump to Potassium binding site number: 1; 2; 3; 4;

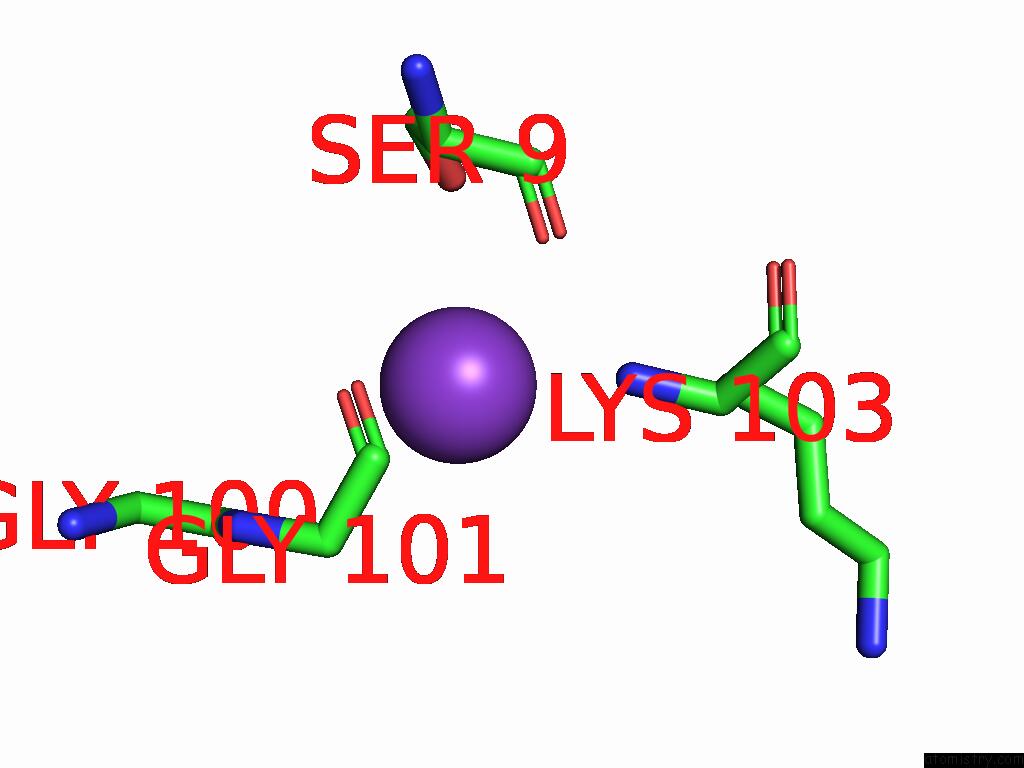

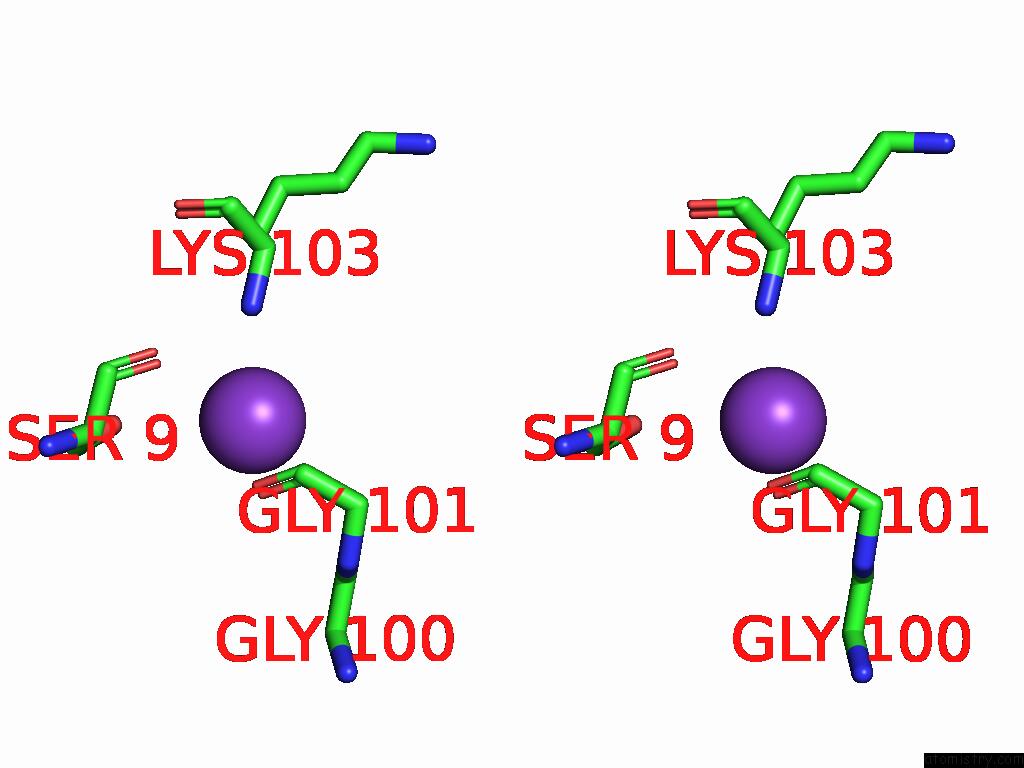

Potassium binding site 1 out of 4 in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 1 of Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab within 5.0Å range: probe atom residue distance (Å) B Occ B:K301 b:81.8 occ:1.00 OG B:SER9 3.7 53.1 1.0 O B:SER9 3.9 46.5 1.0 O B:GLY101 4.0 35.8 1.0 O B:GLY100 4.2 41.6 1.0 C B:GLY101 4.5 36.4 1.0 C B:SER9 4.7 39.7 1.0 CB B:SER9 4.7 35.2 1.0 CA B:SER9 4.8 33.9 1.0 N B:LYS103 5.0 37.0 1.0

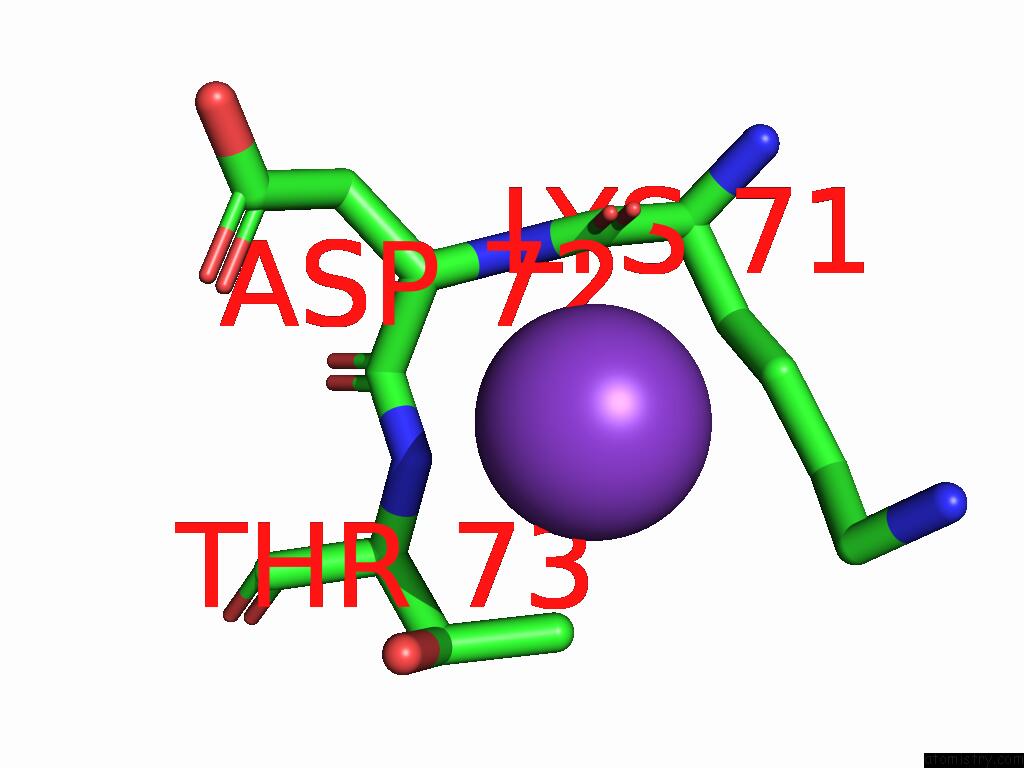

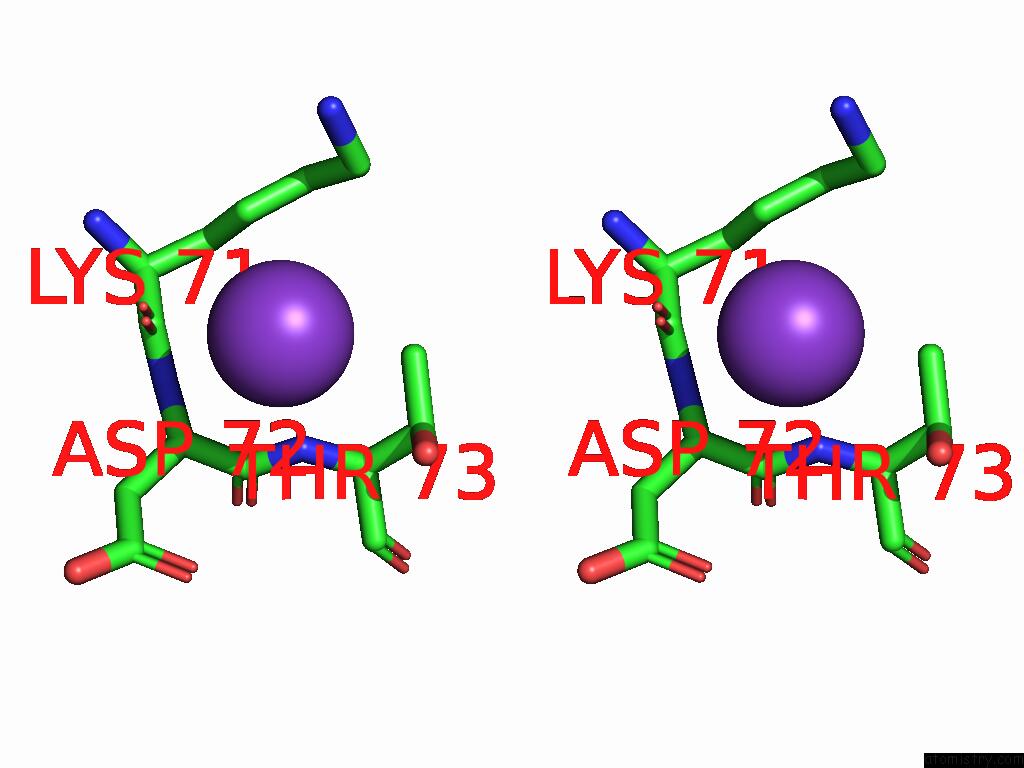

Potassium binding site 2 out of 4 in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 2 of Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab within 5.0Å range: probe atom residue distance (Å) B Occ A:K301 b:49.5 occ:0.50 O A:LYS71 3.3 45.0 1.0 N A:THR73 3.8 34.5 1.0 OG1 A:THR73 3.9 45.2 1.0 CG2 A:THR73 4.0 43.3 1.0 C A:LYS71 4.1 36.7 1.0 CG A:LYS71 4.1 39.9 1.0 CA A:ASP72 4.1 34.0 1.0 CE A:LYS71 4.4 42.6 1.0 N A:ASP72 4.5 32.5 1.0 CB A:THR73 4.5 41.8 1.0 C A:ASP72 4.5 35.3 1.0 NZ A:LYS71 4.7 47.3 1.0 CA A:THR73 4.8 37.6 1.0 CD A:LYS71 4.8 40.5 1.0

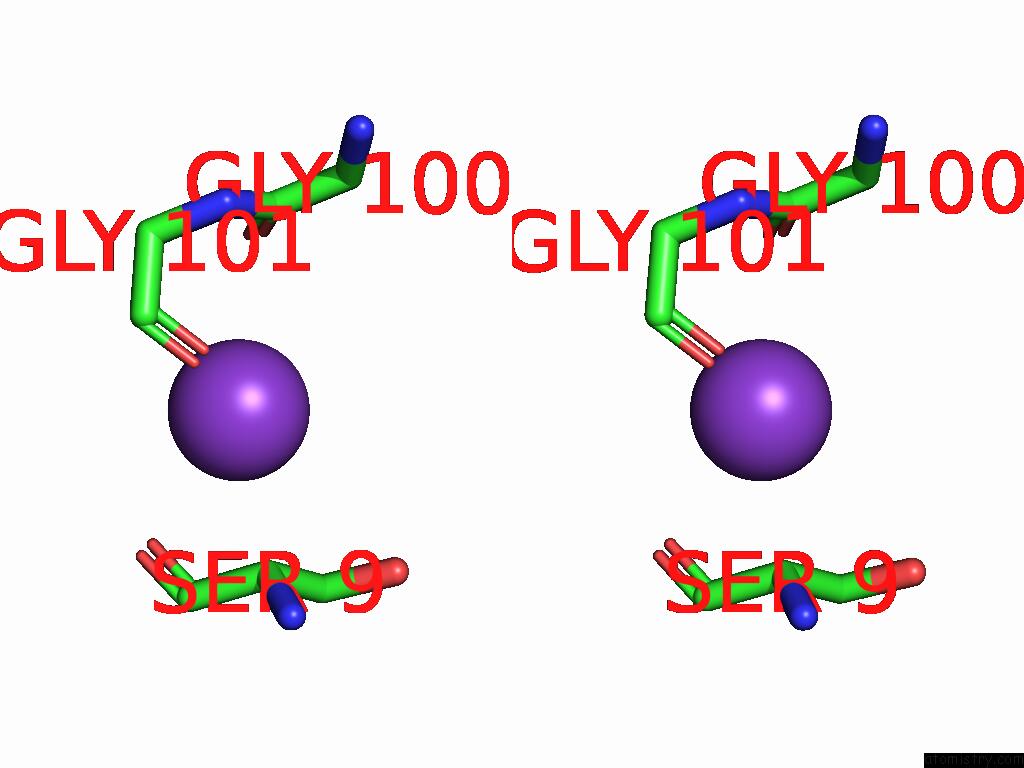

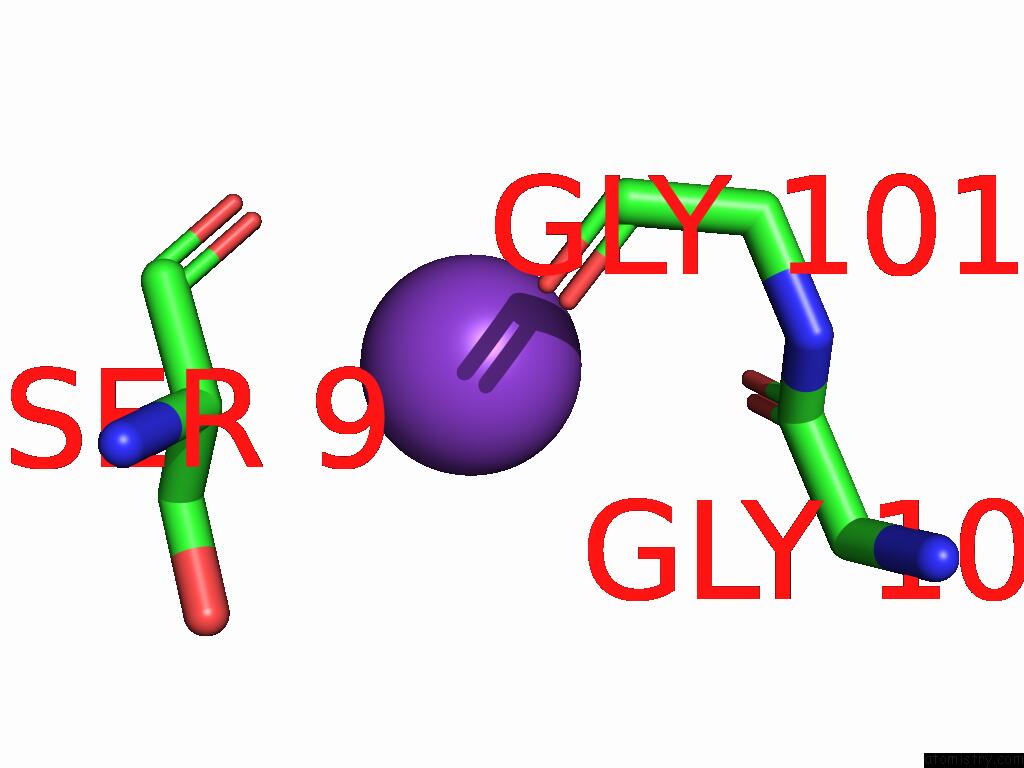

Potassium binding site 3 out of 4 in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 3 of Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab within 5.0Å range: probe atom residue distance (Å) B Occ C:K301 b:79.4 occ:1.00 O C:GLY100 3.7 43.0 1.0 O C:GLY101 3.9 42.4 1.0 O C:SER9 4.0 39.8 1.0 CB C:SER9 4.3 33.3 1.0 C C:GLY101 4.4 42.8 1.0 CA C:SER9 4.5 37.4 1.0 C C:GLY100 4.6 31.9 1.0 C C:SER9 4.6 39.8 1.0 OG C:SER9 4.9 46.6 1.0 CA C:GLY101 4.9 34.6 1.0

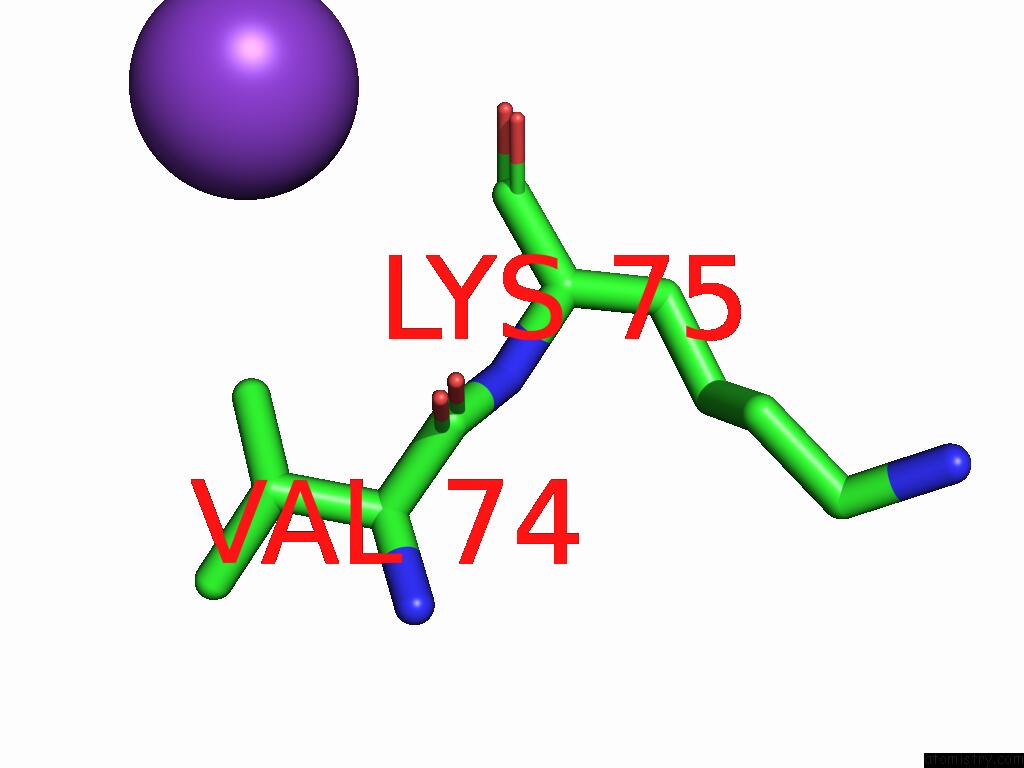

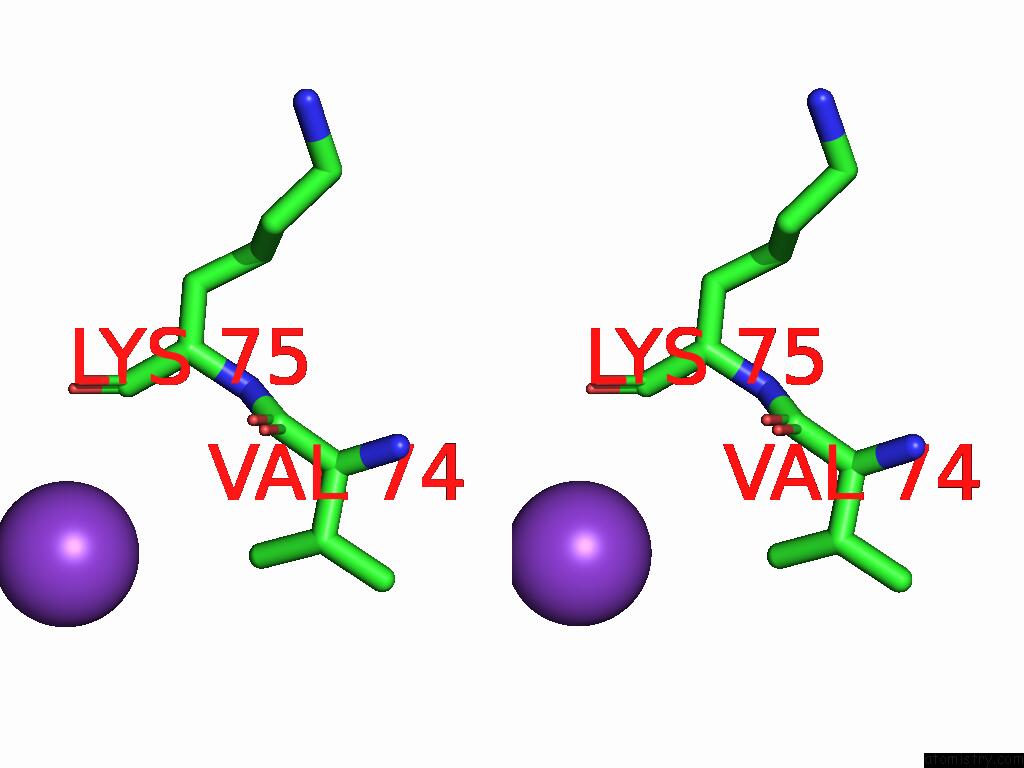

Potassium binding site 4 out of 4 in the Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab


Mono view


Stereo pair view

A full contact list of Potassium with other atoms in the K binding site number 4 of Crystal Structure of A Designed Three-Motif Respiratory Syncytial Virus Immunogen in Complex with Motavizumab Fab within 5.0Å range: probe atom residue distance (Å) B Occ H:K201 b:95.2 occ:1.00 O H:LYS75 4.0 60.9 1.0 O H:VAL74 4.5 56.3 1.0 C H:LYS75 4.6 49.4 1.0 CG1 H:VAL74 4.8 44.9 1.0

K.M.Castro, J.L.Watson, J.Wang, J.Southern, R.Ayardulabi, S.Georgeon, S.Rosset, D.Baker, B.E.Correia. Accurate Single Domain Scaffolding of Three Non-Overlapping Protein Epitopes Using Deep Learning To Be Published.
